Description:

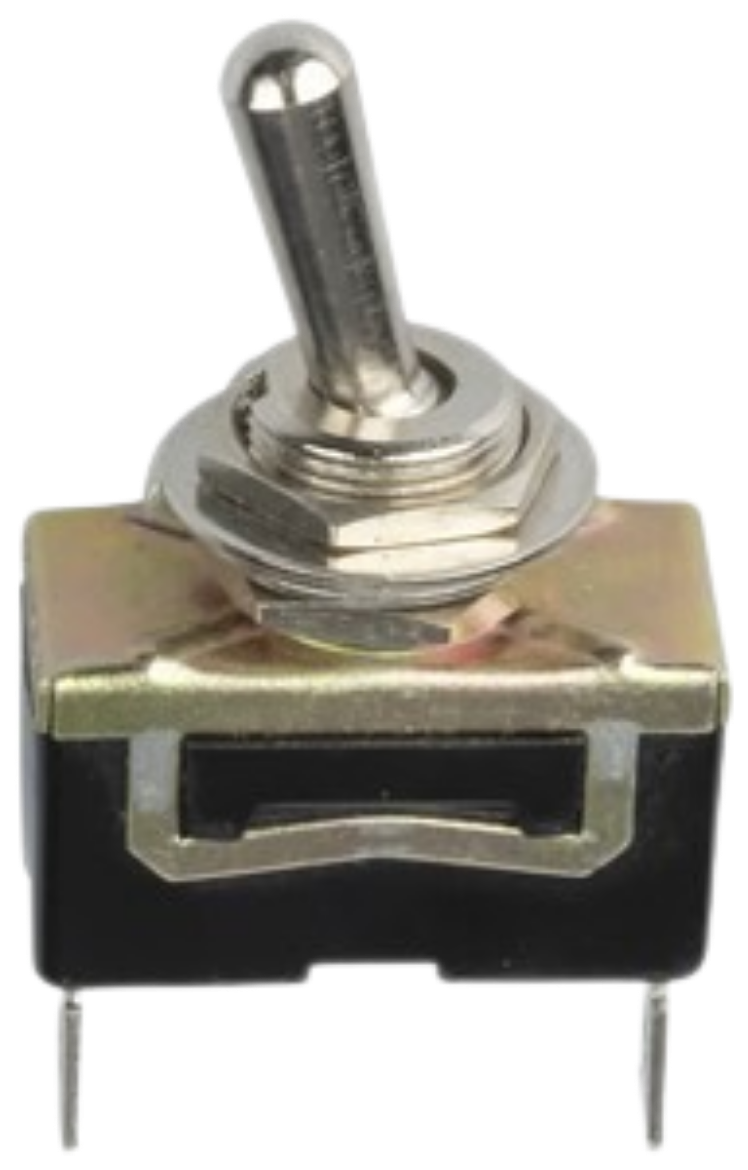

This switch is a SPST momentary action, spring return switch, which is ideal for launching missiles! Suits our ST-0578 Missile Switch Cover.
Specifications:
- DC current rating : 20A
- DC Voltage : 12V
- Length : 29.5mm
- Width : 17mm
- Packaged Volume : 0.02l
- Packaged Weight : 0.02kg
- Packaged Length : 4.2cm
- Packaged Width : 2.8cm
- Packaged Height : 1.7cm
- Switch Type : Toggle
- Poles / Contacts : 1 pole
- Throws / Positions : 1pos
- Switch Function : Single Action Momentary
- Cycle Life : 40000 cycles
- Contact Resistance : 10mΩ
- Insulation Resistance : 1000mΩ
- Dielectric Strength : 1000V
- Actuator Length : 16mm
- Actuator Width : 13mm
SKU: ST0577
