Descirption:

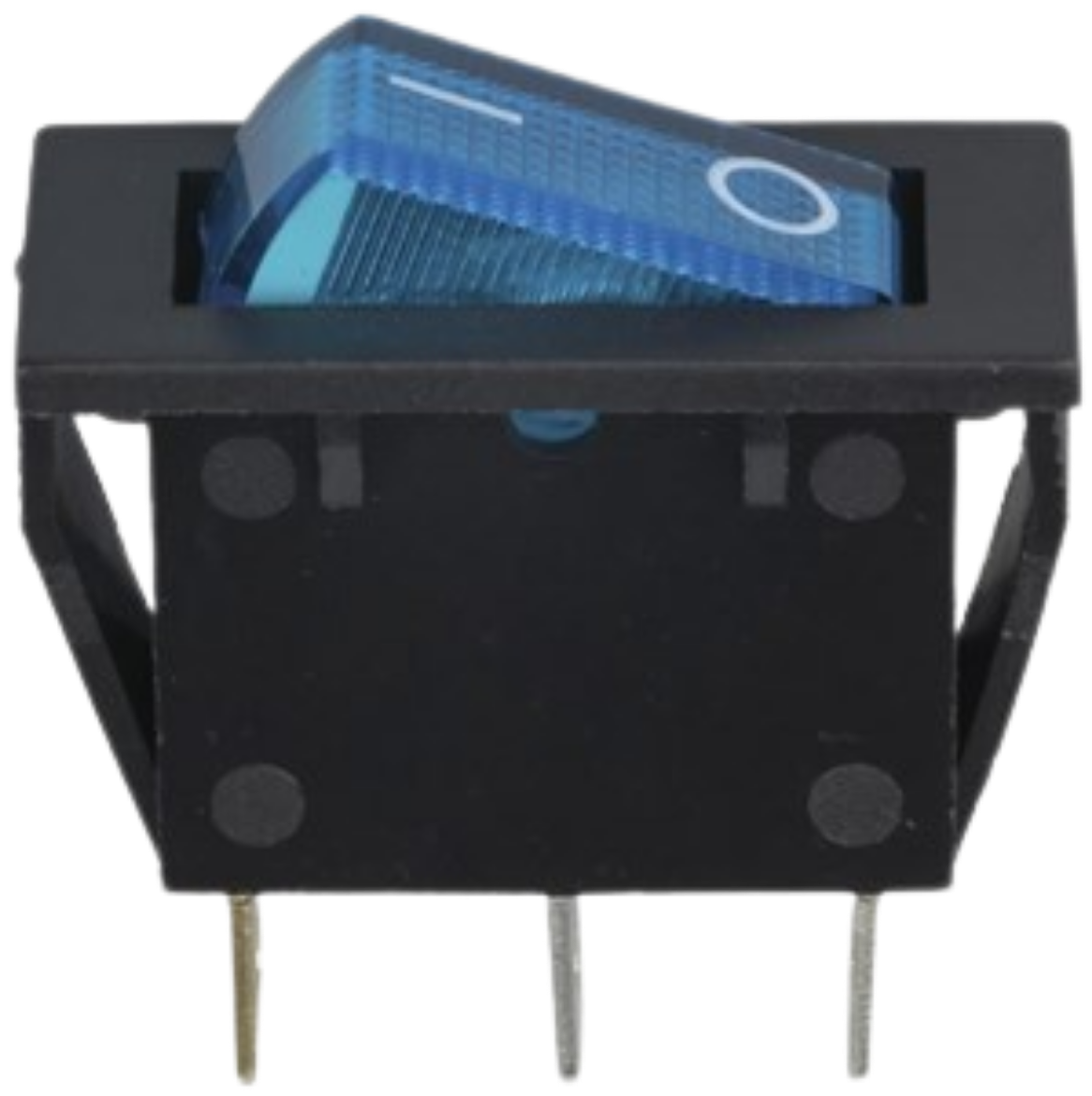

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator
Specification:
AC current rating : 15A
AC Voltage rating : 240V
Nominal Voltage : 250V, 250V
Type : Neon
Illumination Colour : Blue
Connection : Spade Terminals
Length : 33.8mm
Width : 13.8mm
Height : 19.9mm
Packaged Volume : 0.02l
Packaged Weight : 0.01kg
Packaged Length : 3.5cm
Packaged Width : 1.5cm
Packaged Height : 3.9cm
Switch Type : Rocker
Pole Throw Type : SPST
Poles / Contacts : 1 pole
Throws / Positions : 1pos
Switch Function : Locking On/Off
Switch Connection : Spade Terminals
Switch Colour Coded : Blue
Cycle Life : 10000 cycles
Contact Resistance : 50mΩ
Insulation Resistance : 100MΩ
Dielectric Strength : 1000V
Mechanism Material : Plastic
SKU: SK0976
