Description:

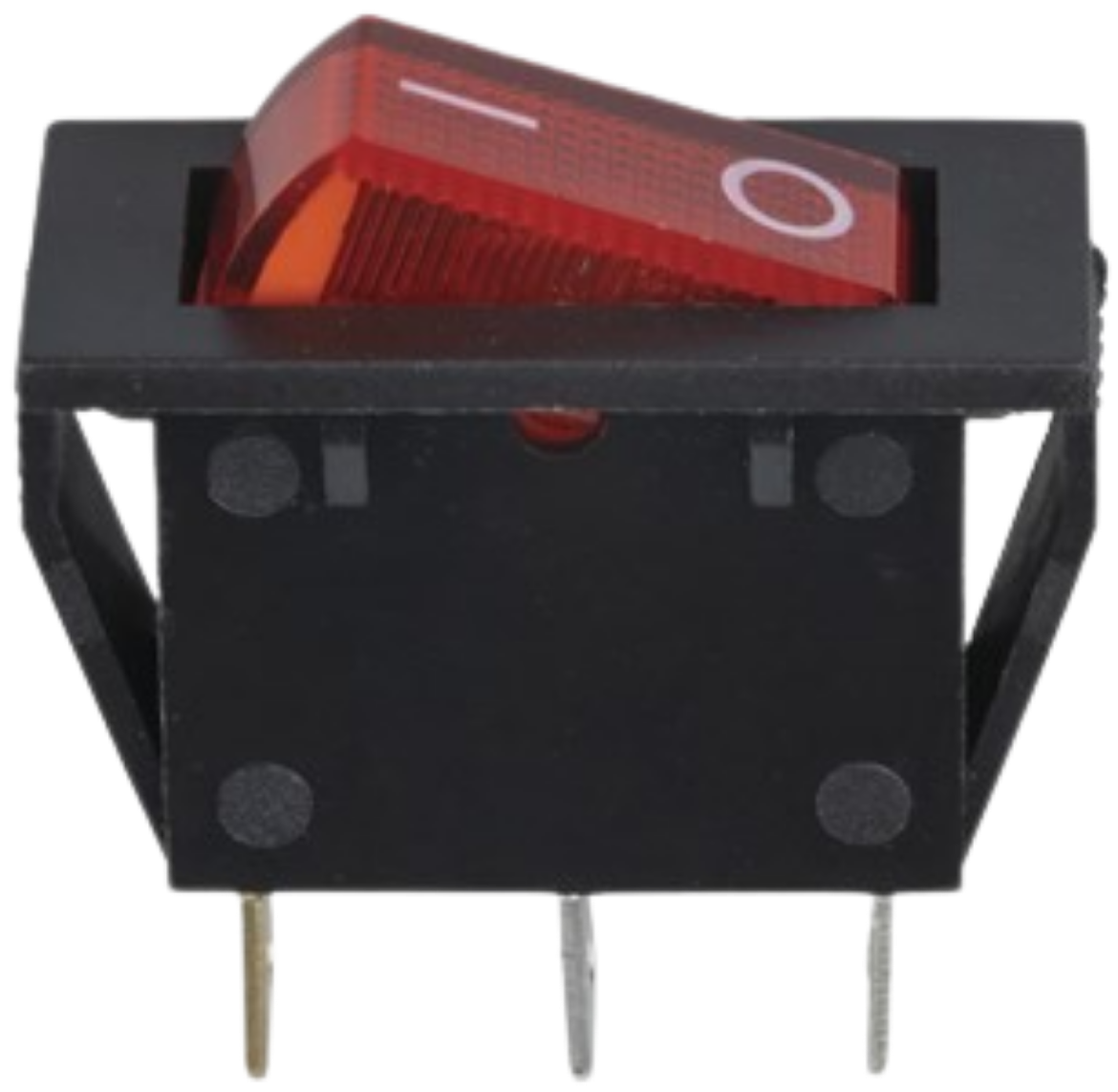

SPST 240V 15A red illuminated rocker switch. Ideal replacement for appliances which use this size switch.

Specification:

• AC current rating : 15A
• AC Voltage rating : 240V
• Nominal Voltage : 250V, 250V
• Type : Neon
• Illumination Colour : Red
• Connection : Spade Terminals
• Length : 33.8mm
• Width : 13.8mm
• Height : 19.9mm
• Packaged Volume : 0.02l
• Packaged Weight : 0.01kg
• Packaged Length : 3.3cm
• Packaged Width : 1.7cm
• Packaged Height : 3.5cm
• Switch Type : Rocker
• Pole Throw Type : SPST
• Poles / Contacts : 1 pole
• Throws / Positions : 1pos
• Switch Function : Locking On/Off
• Switch Connection : Spade Terminals
• Switch Colour Coded : Red
• Cycle Life : 10000 cycles
• Contact Resistance : 50mΩ
• Insulation Resistance : 100Ω
• Dielectric Strength : 1000V
• Mechanism Material : Plastic

SKU: SK0978
