Description:

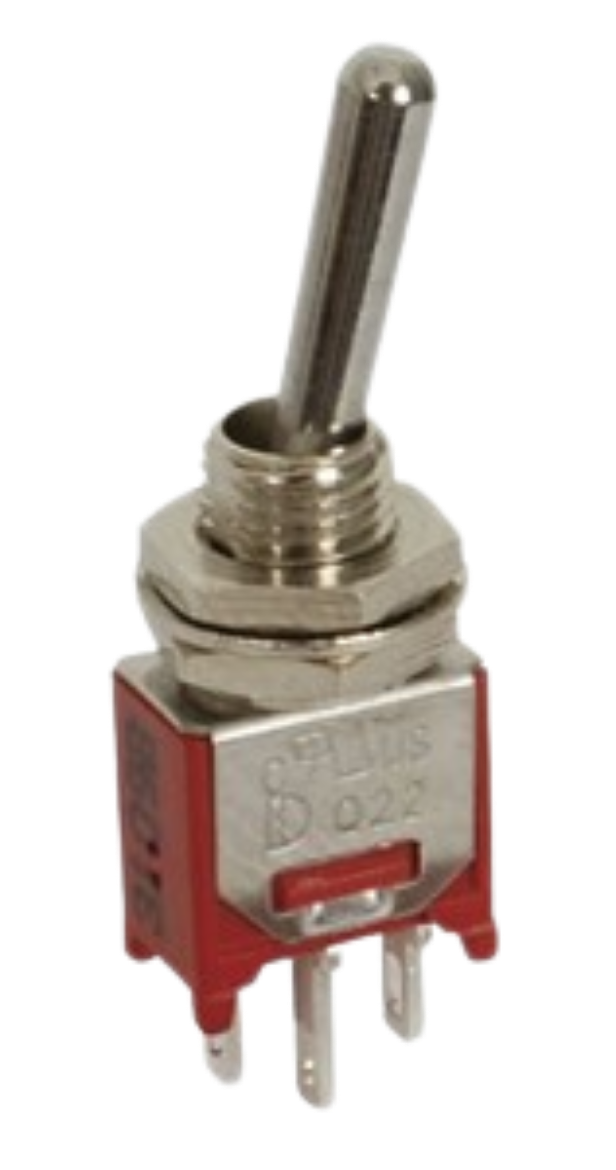

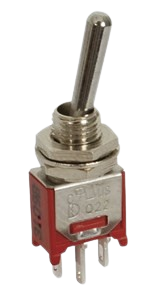

SOLDER TAG - THREADED BUSH
Brackets indicate switch position(on - on)
OPERATING TEMPERATURE: -30 degrees - +85° Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE: Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE: Brass, chrome plated
BUSHING: Brass, nickel-plated
HOUSING: Stainless Steel
TERMINALS: Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS: Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
Specifications:
- AC current rating : 1A
- AC Voltage rating : 250V
- DC current rating : 3A
- DC Voltage : 28V
- Packaged Volume : 0l
- Packaged Weight : 0kg
- Packaged Length : 2.5cm
- Packaged Width : 0.8cm
- Packaged Height : 0.5cm
- Switch Type : Toggle
- Poles / Contacts : 1 pole
- Throws / Positions : 1pos
- Switch Connection : Solder Tags
- Cycle Life : 30000 cycles
- Contact Resistance : 20MΩ
- Insulation Resistance : 1000MΩ
- Dielectric Strength : 1000V
- Actuator Length : 8.13mm
- Actuator Width : 6mm
SKU: ST0300
