Description:

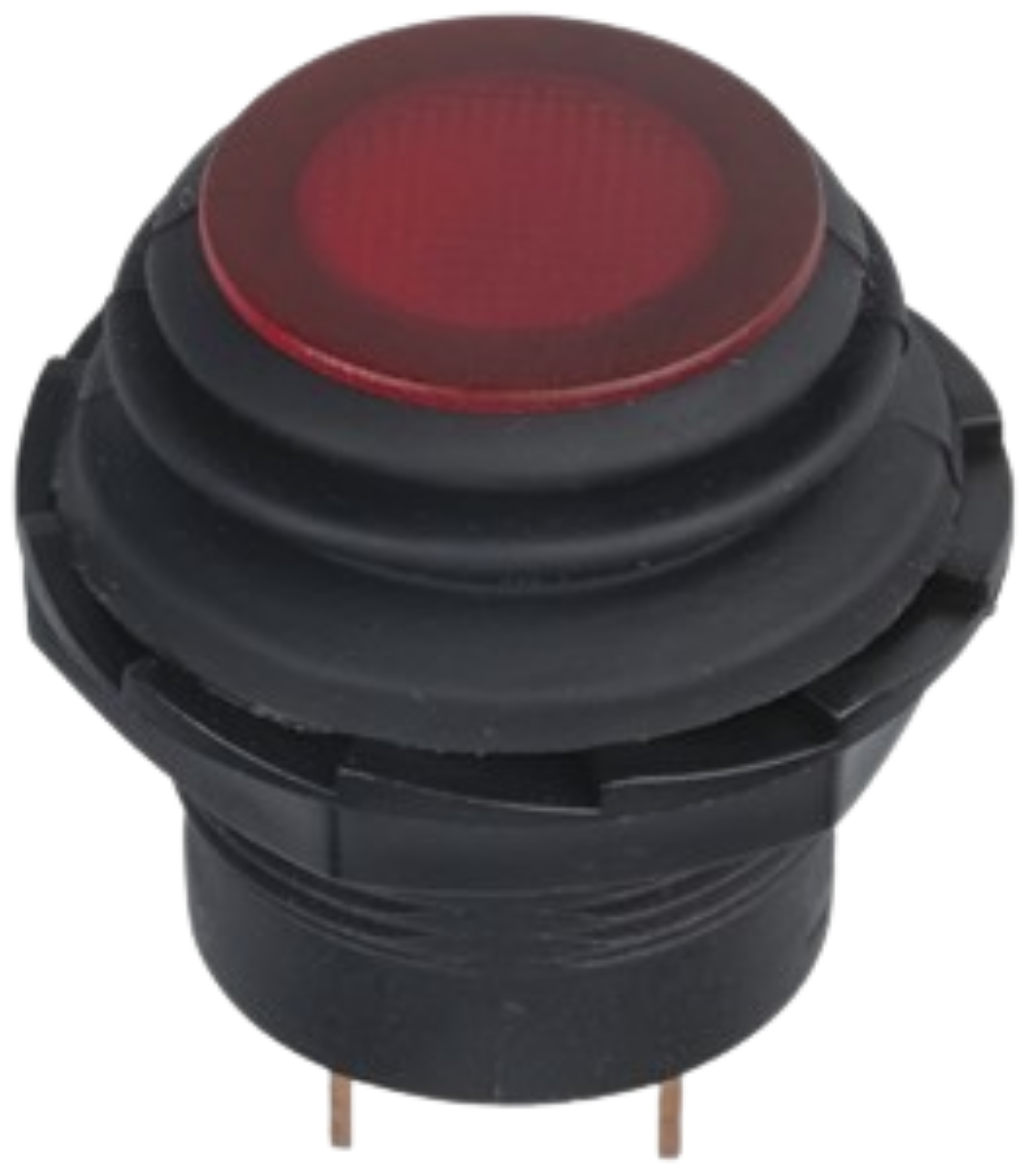

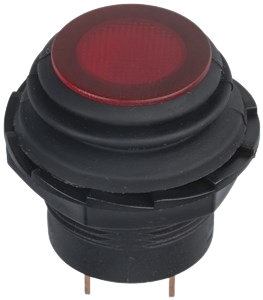

SPST push on-push off that is IP65 rated with red illumination.

Specifications:

• DC current rating : 10A
• DC Voltage : 14V
• IP Rating : 65
• Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
• Liquid/Moisture Ingress Protection : 5 - Water jets
• IP Rating certificate : true
• Nominal Voltage : 12V, 12V
• Type : 5mm Standard LED
• Illumination Colour : Red
• Connection : Spade Terminals
• Illumination Position : Top
• Height : 38mm
• Diameter : 31mm
• Packaged Volume : 0.02l
• Packaged Weight : 0.01kg
• Packaged Length : 3.5cm
• Packaged Width : 2.5cm
• Packaged Height : 2.5cm
• Switch Type : Pushbutton
• Pole Throw Type : SPST
• Poles / Contacts : 1 pole
• Throws / Positions : 1pos
• Switch Function : Locking On/Off
• Switch Connection : Spade Terminals
• Switch Colour Coded : Red
• Contact Resistance : 50mΩ
• Insulation Resistance : 100Ω
• Dielectric Strength : 1500V
• Mechanism Material : Plastic

SKU: SP0759
