Description:

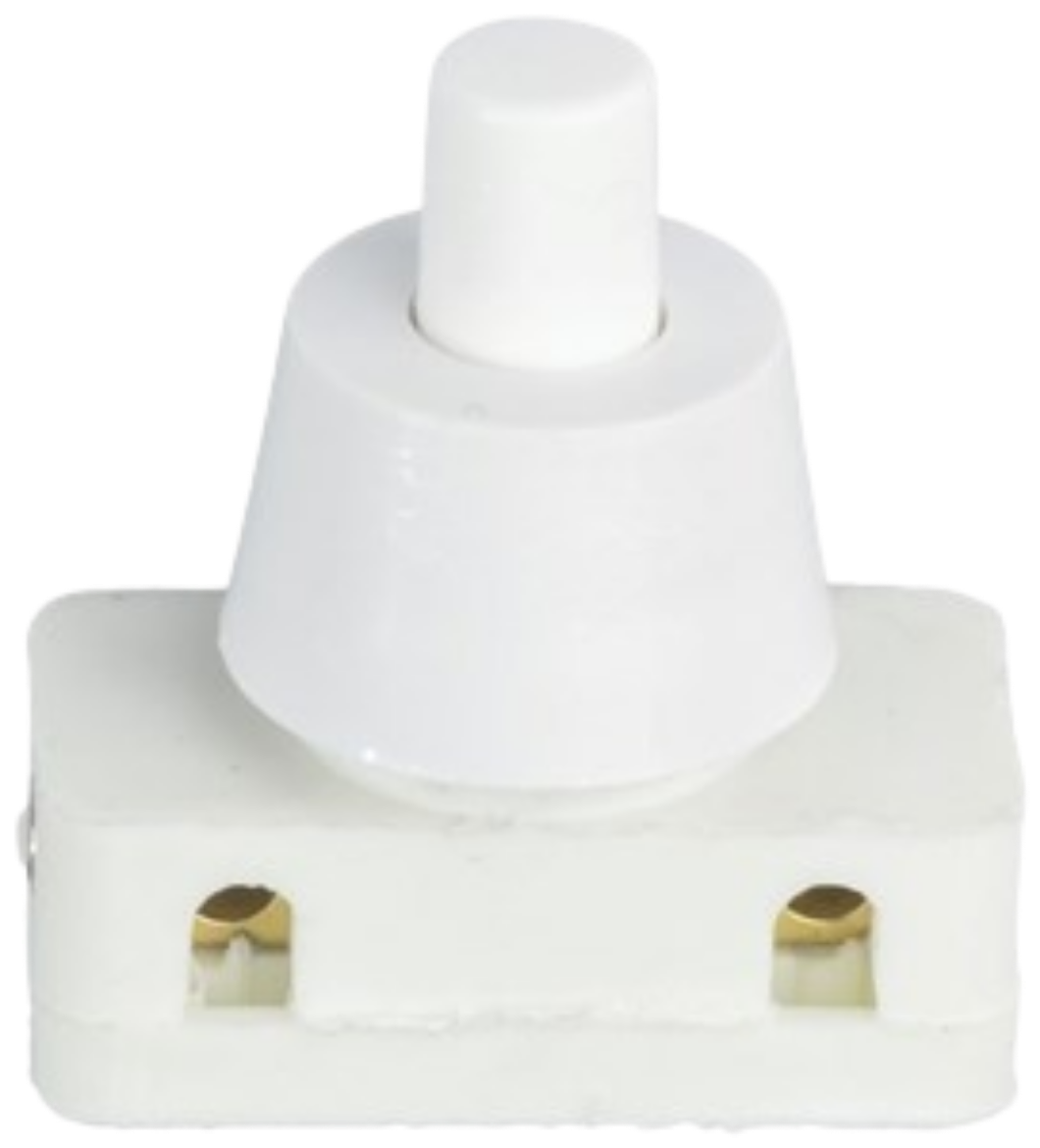

Universal pushbutton switch suitable for replacing switches in some equipment. Also commonly used in small electronics projects such as school science experiments due to ease of connection.
Specificiations:
- AC current rating : 2A
- AC Voltage rating : 240V
- DC current rating : 4A
- DC Voltage : 32V
- Length : 24mm
- Width : 12mm
- Height : 25mm
- Packaged Volume : 0.01l
- Packaged Weight : 0.01kg
- Packaged Length : 3cm
- Packaged Width : 2.5cm
- Packaged Height : 1cm
- Switch Type : Pushbutton
- Pole Throw Type : SPST
- Poles / Contacts : 1 pole
- Throws / Positions : 1pos
- Switch Function : Locking On/Off
- Centre Off : false
- Switch Connection : Screw Terminal
- Cycle Life : 50000 cycles
- Mechanism Material : Acrylic
- Actuator Length : 6mm
- Actuator Diameter : 5mm
SKU: SP0735
