Description:

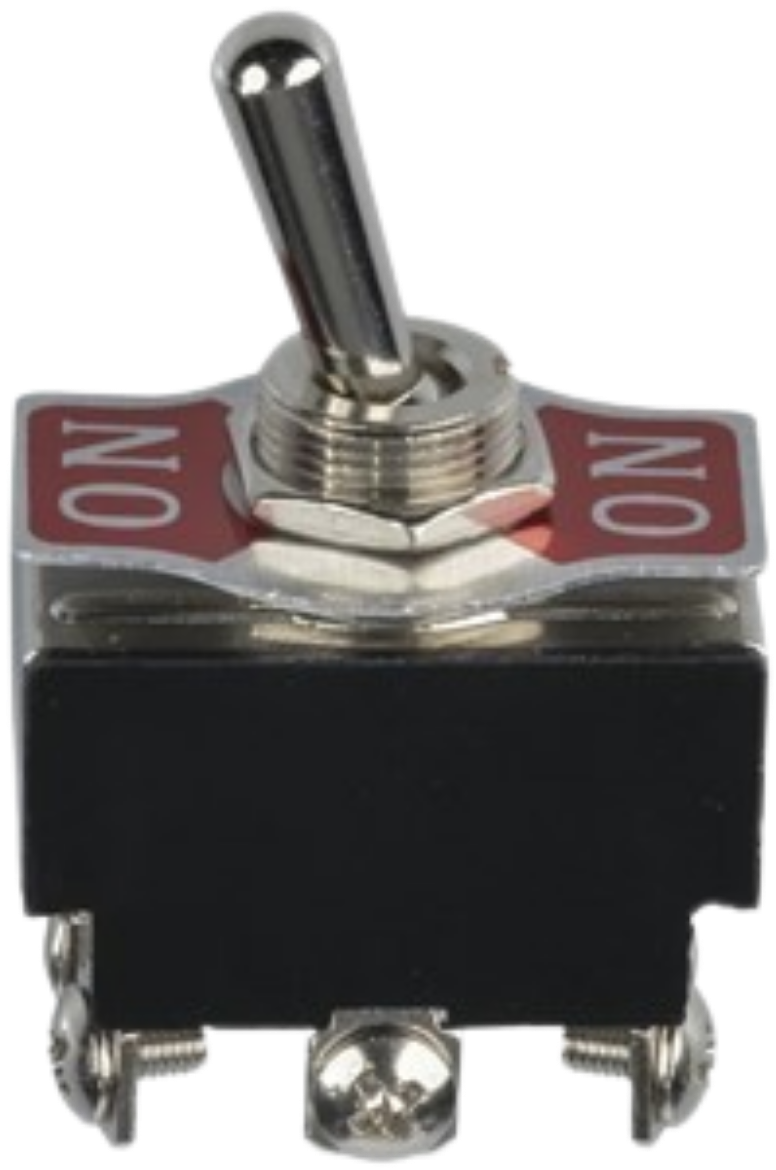

Rated at 6A 250VAC, this switch will handle mains power switching. With DPDT with screw terminals for cable - no soldering! And 12mm mounting hole
Specifications:
- Packaged Volume : 0.04l
- Packaged Weight : 0.03kg
- Packaged Length : 3.2cm
- Packaged Width : 2cm
- Packaged Height : 5.5cm
- AC Voltage rating : 250V
- AC current rating : 10A
- Switch Type : Toggle
- Poles / Contacts : 2 pole
- Throws / Positions : 1pos
- Cycle Life : 40000 cycles
- Contact Resistance : 10mΩ
- Insulation Resistance : 1000mΩ
- Dielectric Strength : 1000V
- Switch Connection : Screw Terminal
- Actuator Length : 18.5mm
- Actuator Width : 19mm
SKU: ST0575
