Socket & Chipset | LGA 1700, Intel B760 |
Processor Support | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
Memory | 4x DDR5 slots, up to 6800+MHz (OC), supports XMP 3.0 |
Storage | 2x M.2 slots (one is Lightning Gen 4 x4), 4x SATA 6Gb/s ports |
Expansion Slots | 1x PCIe 4.0 x16 slot, plus other PCIe slots |
Networking | Realtek 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.3 |
Audio | Realtek ALC897 7.1-Channel HD Audio Codec with S/PDIF |

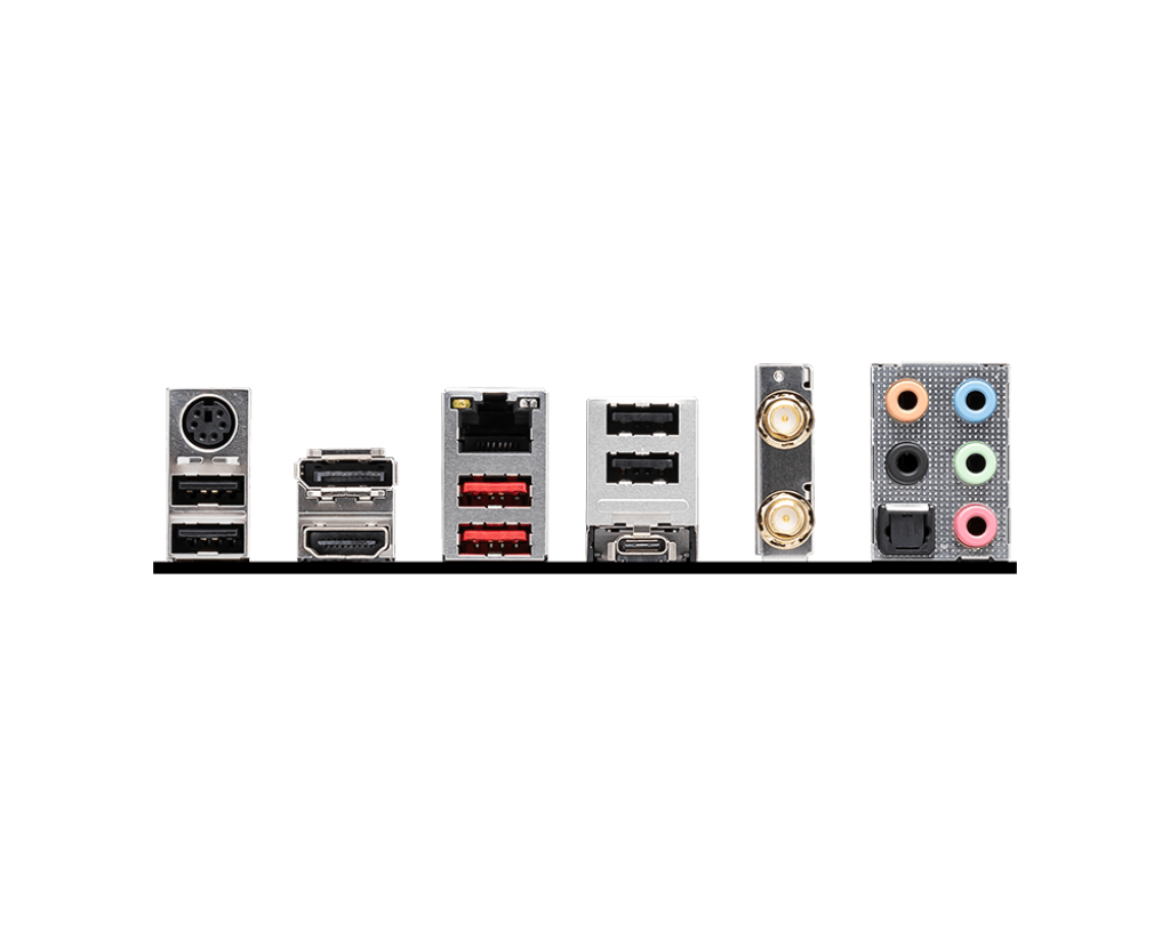

Rear I/O | HDMI 2.1, DisplayPort 1.4, 2.5G LAN, Wi-Fi antenna, 7x USB ports (including 2x 10Gbps USB-A and 1x 10Gbps USB-C), audio jacks, S/PDIF out |
Form Factor | ATX |
Power | 12+1 Duet Rail Power System with 8-pin + 4-pin CPU power connectors |
Cooling | Extended heatsink, VRM heatsink, M.2 Shield Frozr, thermal pads rated for 7W/mK |
| |
