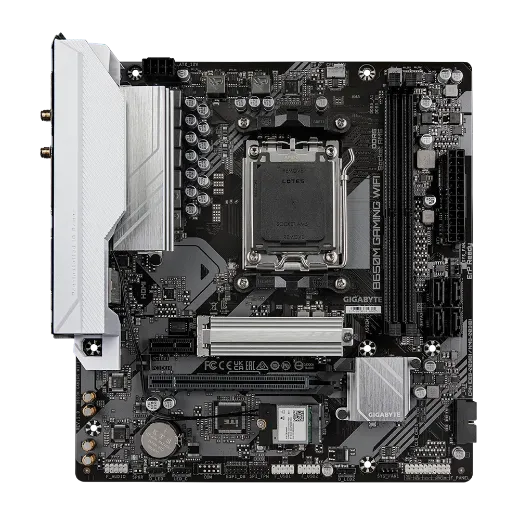

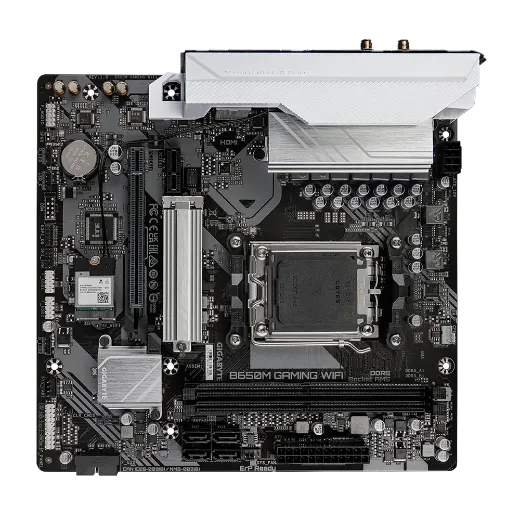

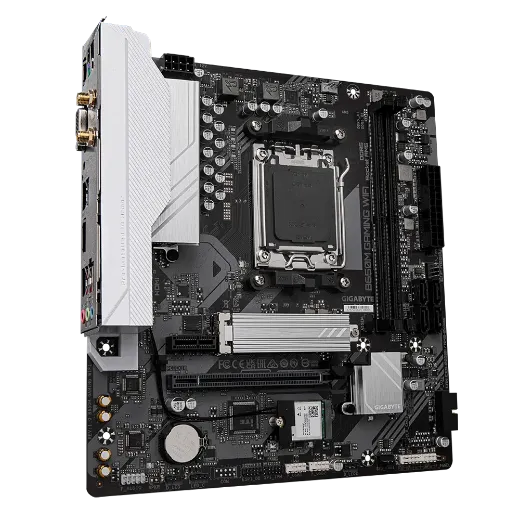

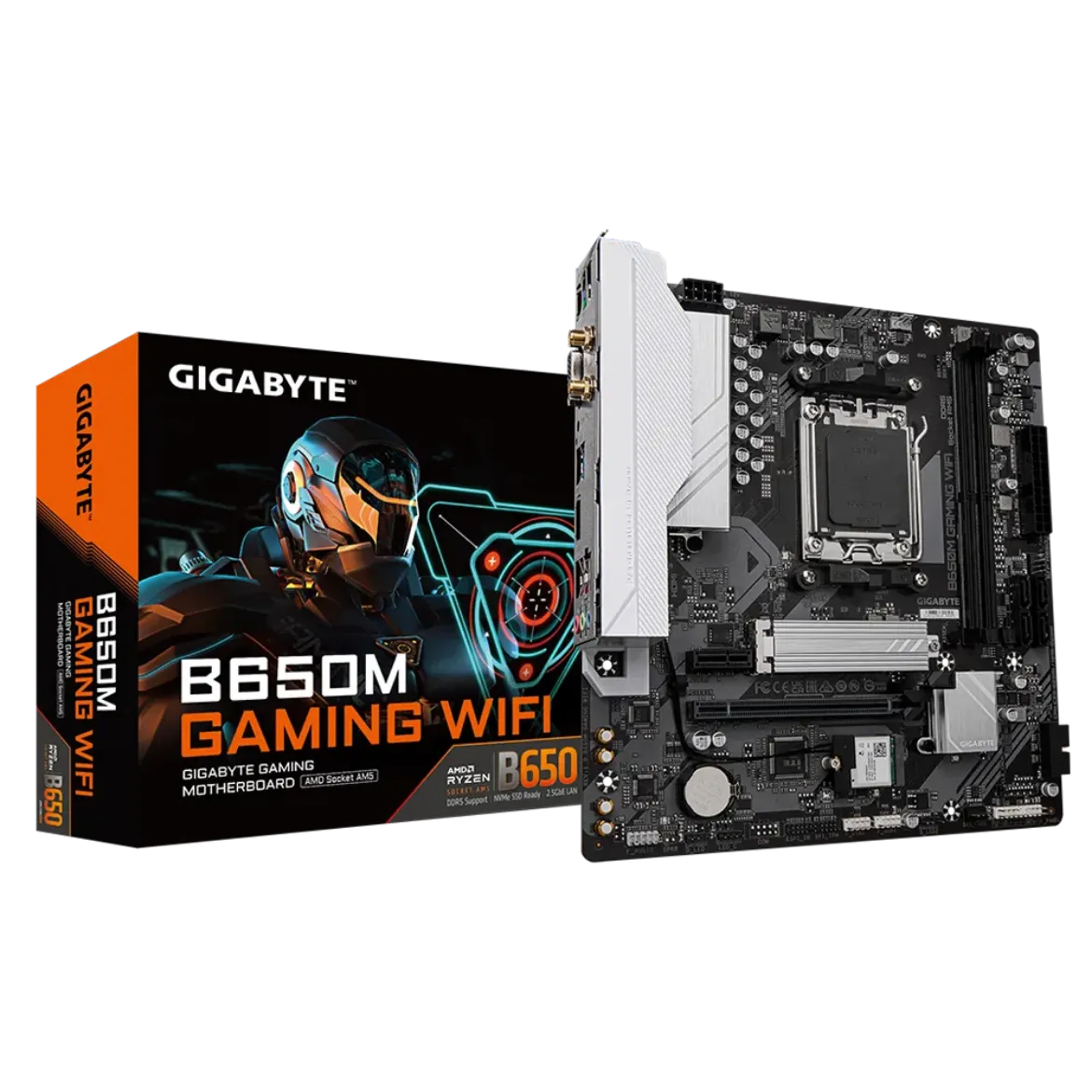

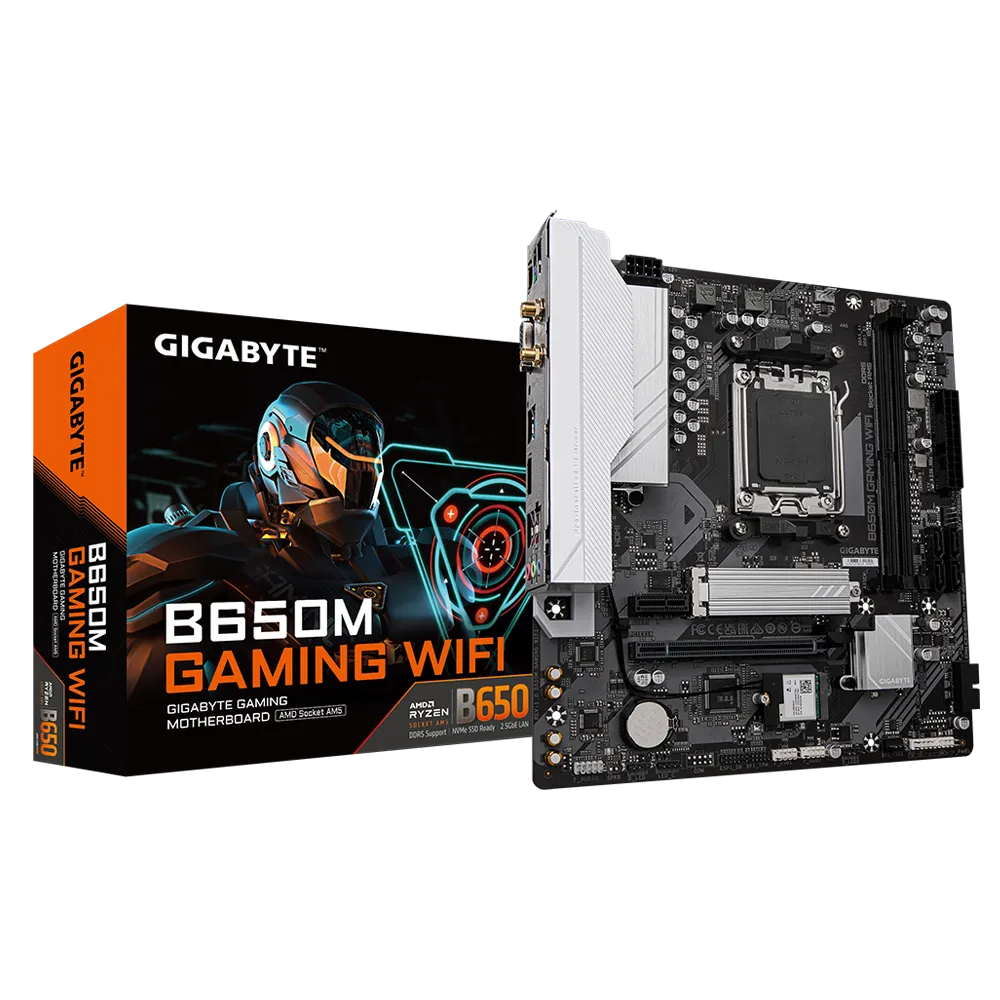

Gigabyte B650M Gaming Plus WiFi Motherboard
Gigabyte B650M Gaming Plus WiFi Motherboard
Previous
Next
Gigabyte B650M Gaming Plus WiFi Motherboard
EACH
$235.00 Inc. GST
Availability:
Out of Stock
Brand:
Gigabyte
SKU:
MBG-B650MGAMINGPLWF
increase
decrease
Call for pricing
Add to Cart
Add to wishlist
Add to compare list
Email a friend
Overview
Specifications
Contact Us
Description
Specifications:
Model Number: GA-B650M-GAMING-PLUS-WIFI
CPU: AMD Socket AM5, Support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
Chipset: AMD B650
Memory Support for DDR5: 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory (Dual channel memory architecture). Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules
Support for AMD Extended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics Support: 2x DisplayPort’s, supporting a maximum resolution of 3840 x 2160@144 Hz, 1x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz (Support for up to triple-display at the same time)
Audio Realtek® Audio CODEC
High-Definition Audio: 2/4/5.1/7.1-channel
LAN: Realtek® 2.5 GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication Module: Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
Bluetooth 5.3
1 x PCI Express x 16 Slot (PCIE x 16), Integrated in the CPU:
AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x 16 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 mode
1 x PCI Express x 1 slot, supporting PCIe 3.0 and running at x 1 (PCIE x 1)
Storage Interface: 1 x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2580 SSDs:
AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x 4 / x 2 SSDs
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 4 / x 2 SSDs
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 / x 2 SSDs
1 x M.2 Connector (M2C_SB), Integrated in the Chipset, Supporting Socket 3, M Key, Type 22110 / 2280 PCIe 4.0 x 4 / x 2 SSDs
4 x SATA 6 Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 port on the back panel
1x USB 2.0 / 1.1 port on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
5 x USB 2.0 / 1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0 / 1.1 ports
1 x HDMI port
2 x DisplayPort’s
2 x SMA antenna connectors (2T2R) (1T1R)*
Only for Realtek® Wi-Fi 6 RTL8851BE
1 x RJ-45 port
3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
BIOS: 1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Operating System: Support for Windows 11 64-bit / Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 24.4 cm x 24.4 cm
SKU:
MBG-B650MGAMINGPLWF
Specifications
Products specifications
Attribute name
Attribute value
Warranty
12 months
Contact Us
Send us a message
Your name
*
Your email
*
Enquiry
*
Submit
Specifications:
Model Number: GA-B650M-GAMING-PLUS-WIFI
CPU: AMD Socket AM5, Support for: AMD Ryzenâ„¢ 7000 / Ryzenâ„¢ 8000 / Ryzenâ„¢ 9000 Series Processors
Chipset: AMD B650
Memory Support for DDR5: 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory (Dual channel memory architecture). Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules
Support for AMD Extended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics Support: 2x DisplayPort’s, supporting a maximum resolution of 3840 x 2160@144 Hz, 1x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz (Support for up to triple-display at the same time)
Audio Realtek® Audio CODEC
High-Definition Audio: 2/4/5.1/7.1-channel
LAN: Realtek® 2.5 GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless Communication Module: Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
Bluetooth 5.3
1 x PCI Express x 16 Slot (PCIE x 16), Integrated in the CPU:
AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x 16 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 mode
1 x PCI Express x 1 slot, supporting PCIe 3.0 and running at x 1 (PCIE x 1)
Storage Interface: 1 x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2580 SSDs:
AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x 4 / x 2 SSDs
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 4 / x 2 SSDs
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 / x 2 SSDs
1 x M.2 Connector (M2C_SB), Integrated in the Chipset, Supporting Socket 3, M Key, Type 22110 / 2280 PCIe 4.0 x 4 / x 2 SSDs
4 x SATA 6 Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 port on the back panel
1x USB 2.0 / 1.1 port on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
5 x USB 2.0 / 1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12 V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0 / 1.1 ports
1 x HDMI port
2 x DisplayPort’s
2 x SMA antenna connectors (2T2R) (1T1R)*
Only for Realtek® Wi-Fi 6 RTL8851BE
1 x RJ-45 port
3 x audio jacks
I/O ControlleriTE® I/O Controller Chip
BIOS: 1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Operating System: Support for Windows 11 64-bit / Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 24.4 cm x 24.4 cm
SKU:
MBG-B650MGAMINGPLWF
Products specifications
Attribute name
Attribute value
Warranty
12 months
Related Products
MSI PRO mATX Motherboard
MBMS-H610M-GDDR4-W
Out of Stock
$230.00 Inc. GST
EACH
increase
decrease
Add to Cart
Add to Cart
Add to wishlist
Add to compare list
Gigabyte H610M S2H V2 DDR4 Motherboard
H610M-S2HV2DDR4
Out of Stock
$169.45 Inc. GST
EACH
increase
decrease
Add to Cart
Add to Cart
Add to wishlist
Add to compare list
Gigabyte B760M Gaming Motherboard
B760MGXAX
In stock
$329.00 Inc. GST
EACH
increase
decrease
Add to Cart
Add to Cart
Add to wishlist
Add to compare list
Back to Top
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
No data found.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
No data found.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
No data found.
