Overview

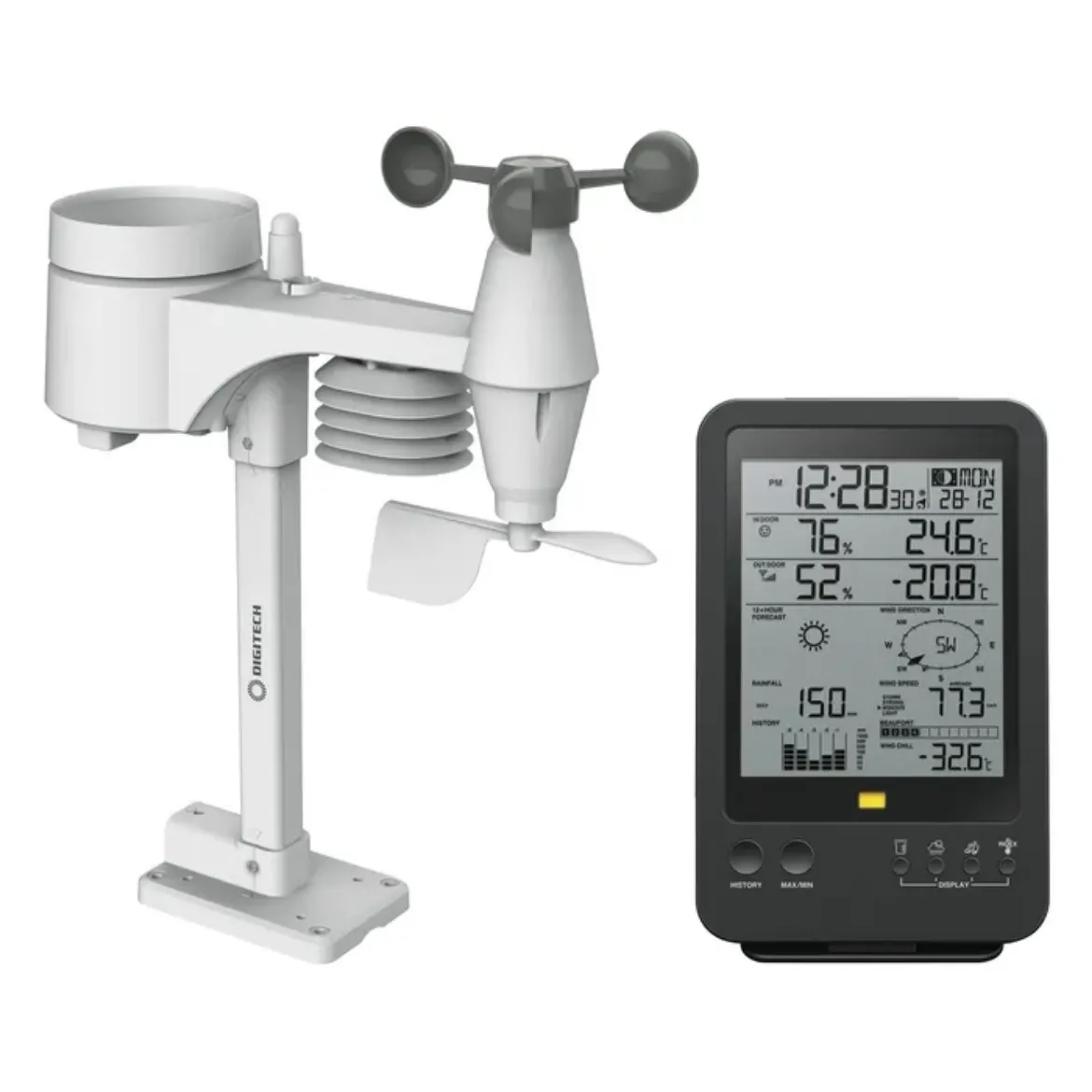

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency signal (917MHz band) to the main display unit up to 150m away (line of sight).

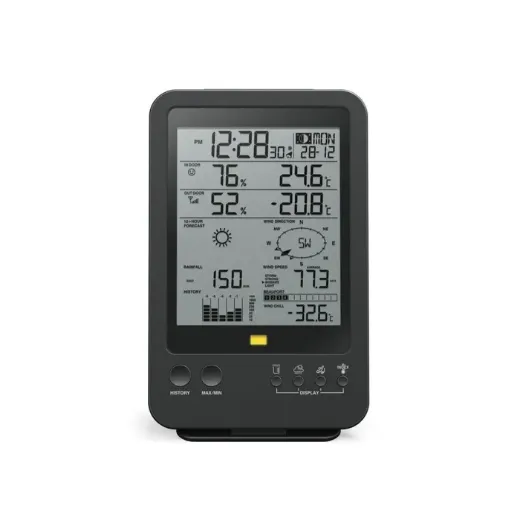

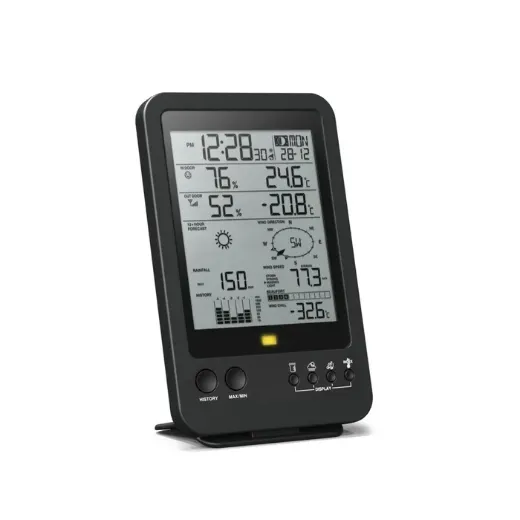

The main display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.

The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.

Features:

• Indoor & Outdoor Temperature (°C or °F)
• Min/Max Records
• Indoor & Outdoor Hygrometer
• Wind Speed  (m/s, km/h, mph, or knots)
• Wind Direction
• Wind Chill
• Dew Point
• Heat index
• Rain Gauge  (in or mm)
• Rain Rate
• Barometric Pressure (hPa, inHg, or mmHg)
• Moon Phase
• Time/Date Display
• High/Low Alarms
• 12 Hour Forecast
• Rainfall & Barometer Histogram

Specifications

Weather Stations

• Sensor Type - Remote wireless sensor
• Sensor Battery Type - Alkaline
• Sensor Battery Size - AA
• Sensor Battery Quantity - 3.0 pc

Power from disposable battery

• Size / Shape - AA
• Battery quantity - 3.0 pc
• Battery used for - Transmitter

Meter Display

• Display Type - LCD
• Display Height - 165.0 mm
• Display Width - 90.0 mm
• Display Backlight - LED Backlit
• Display colour - Monochrome

Measures Temperature

• Outdoor / Exterior Scale -40.0°C-65.0°C

• Additional Dimensions (Remote Sensor)
• Width - 343.0 mm
• Height - 393.0 mm
• Depth - 136.0 mm

Measures Humidity and Moisture

Relative humidity range 20.0%-90.0%

• RH Humidity measure accuracy +/- 5.0 %

Measures Wind

• Wind Speed Range - 180.0km/h-180.0km/h

Measures Rainfall

• Sensor Type - Rocker Collector (Continuous Flow)
• Maximum Rainfall Reading - 9.0 mm

Measures Atmospheric Pressure

• Pressure Range - 54.0kPa-110.0kPa

Wireless Transmission

• Transmission frequency - 917.0 MHz
• Transmission power - 917.0 W
• Transmission range - 150.0 m

Product Dimensions

• Width - 120.0 mm
• Height - 190.0 mm
• Depth - 22.0 mm
• Weight - 370.0 g

Internal or Sub-part Dimensions(Active Display Area)

• Width - 90.0 mm
• Height - 120.0 mm
