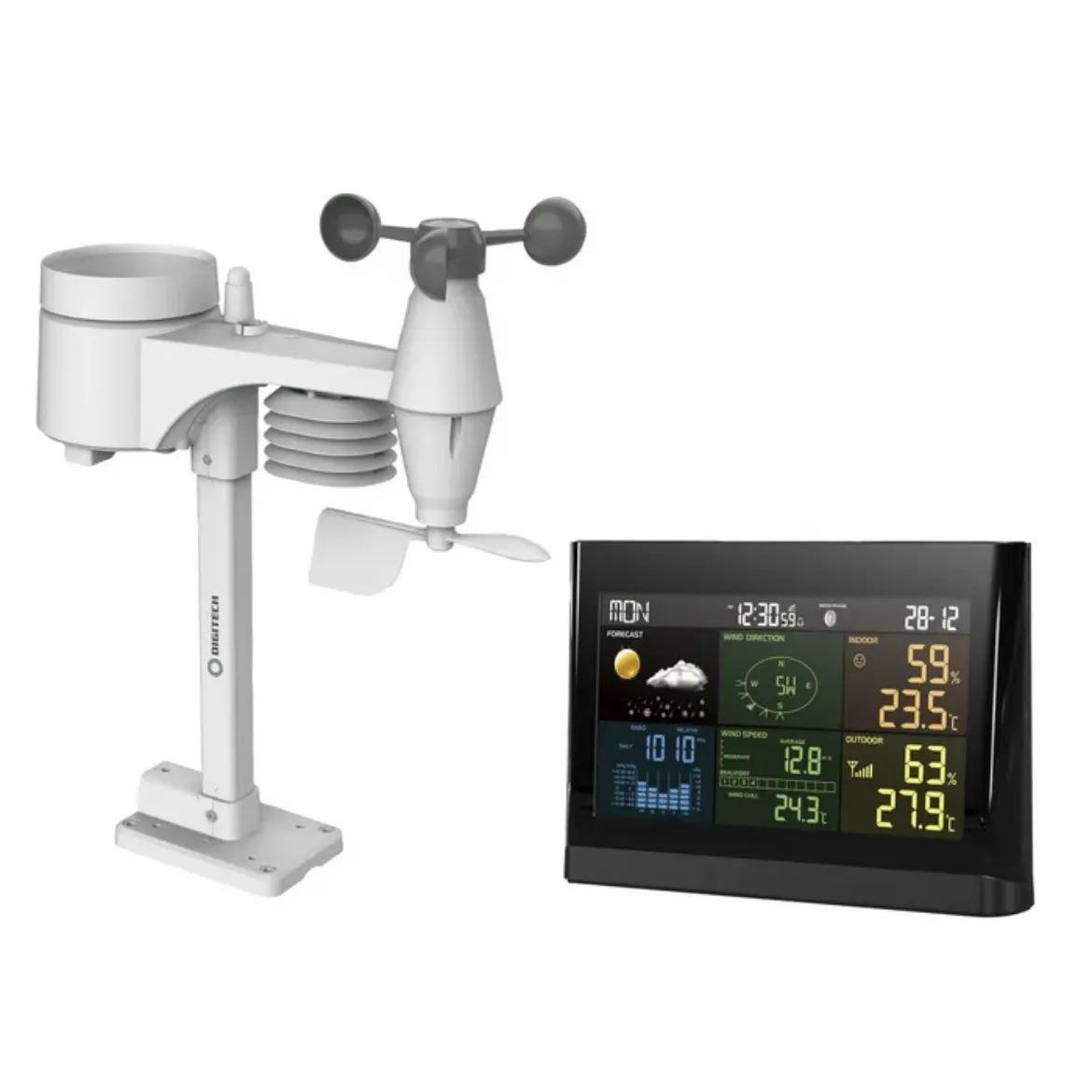

Overview

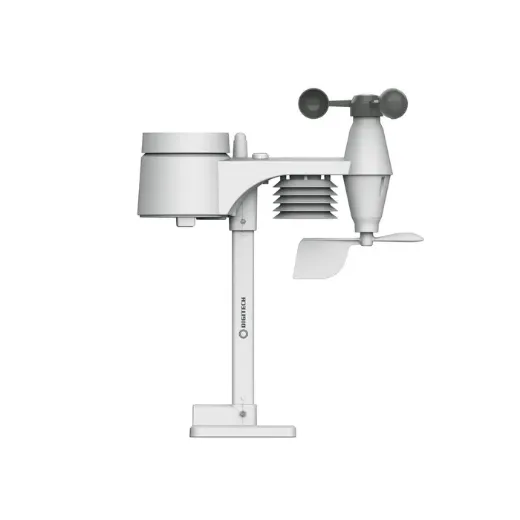

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency 917MHz band to the main display unit up to 150m away (line of sight).

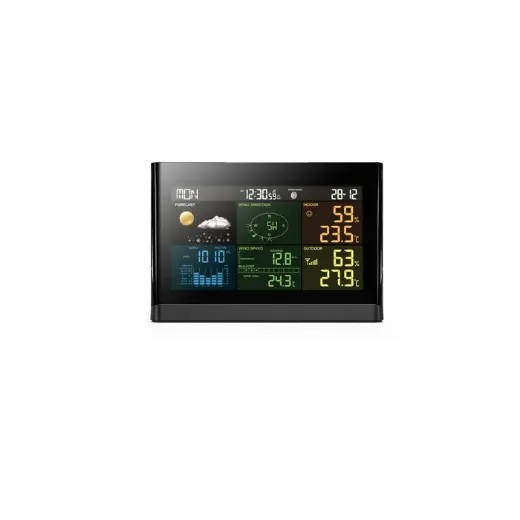

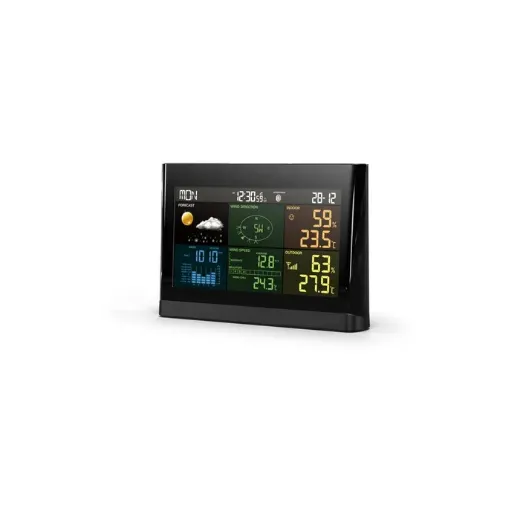

The attractive multi-colour display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.
The display can be desk or wall mounted, and push buttons on top of the display makes it easy to toggle between the different display options, including a large snooze button if you like your sleep-ins.
The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.
A mains power supply is included for the main display.
Features
- Attractive Colour Display
- Up to 150m Range
- Indoor & Outdoor Temperature (°C or °F)
- Min/Max Records
- Indoor & Outdoor Hygrometer
- Wind Speed (m/s, km/h, mph, or knots)
- Wind Direction
- Feels Like
- Wind Chill
- Dew Point
- Heat Index
- Rainfall (in or mm)
- Rain Rate
- Barometric Pressure (hPa, inHg, or mmHg)
- Moon Phase
- Time/Date Display
- High/Low Alarms
- 12 Hour Forecast
- Rainfall & Barometer Histogram
Specifications
Weather Stations
Weather Station Style
Sensor Type
Power from disposable battery
- Size / Shape - AA
- Battery quantity - 3.0 pc
- Battery used for - Transmitter
- Type - Alkaline
Meter Display
- Display Type - LCD
- Measures Temperature
- Outdoor / Exterior Scale -40.0°C-65.0°C
Additional Dimensions (Remote Sensor)
- Width - 343.0 mm
- Height - 393.0 mm
- Depth - 136.0 mm
Measures Humidity and Moisture
- Relative humidity range - 1.0%-99.0%
Measures Rainfall
- Sensor Type - Rocker Collector (Continuous Flow)
- Maximum Rainfall Reading - 9.0 mm
Wireless Transmission
- Transmission frequency - 917.0 MHz
- Transmission range - 150.0 m
Product Dimensions (Main Unit)
- Width - 202.0 mm
- Height - 138.0 mm
- Depth - 38.0 mm
- Weight - 500.0 g
Internal or Sub-part Dimensions (Display Area)
- Width - 120.0 mm
- Height - 90.0 mm
Power from Plugpack
- DC Plugpack Voltage - 5.0V,5.0V
- DC Current Draw - 300.0mA,300.0mA
- PSU Powers - Receiver
