Description:

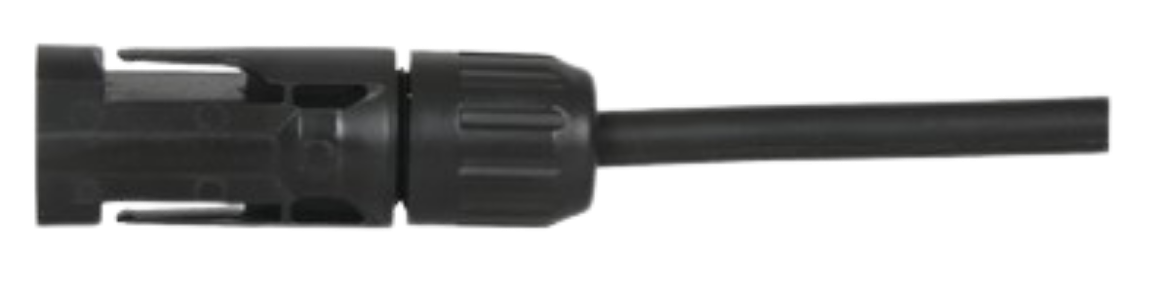

This photovoltaic (PV) system MC4 connector is ideally suited to harsh installations such as solar panel arrays and other permanent outdoor applications. When matched with our solar power cables WH-3120 and WH-3122, you can leave your cabling out in the open with the knowledge that you will never have a bad connection or an oxidised power cable. Both panel mounting and in-line connectors are available to suit a wide range of system applications.
Specifications:
- Packaged Volume : 0.05l
- Packaged Weight : 0.01kg
- Packaged Length : 7.7cm
- Packaged Width : 2.7cm
- Packaged Height : 2.2cm
- Operating Temperature : -40°C, 90°C
- Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection : 7 - Immersion up to 1m
- IP Rating : IP67
- DC Voltage : 1V
- DC current rating : 30A
- Pack Quantity : 1pc
- Device : Socket
- Plug or Socket Type : 4mm PV Connector (MC4 Style)
- Contacts / Pins : 1pc
- Attachment Method : Crimp
- Pin Size : 4mm
- Case Material : Plastic
- Cord Tension Relief : Rubber Collar
- Contact Material : Plated Metal
- Contact resistance : 5mΩ, 5mΩ
SKU: PS5100
