Overview
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite: Network
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45

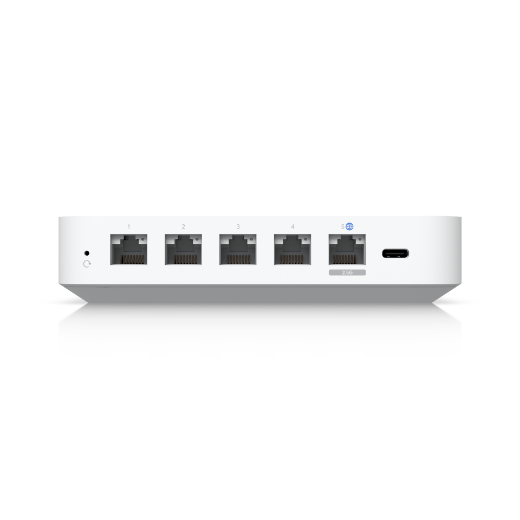

Port Layout
- 1 GbE RJ45: 4 (1G/100M/10M)
- 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M)
IDS/IPS Throughput: 1 Gbps
Form Factor: Compact desktop
Security
Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
VPN & SD-WAN
License-Free SD-WAN
Site-to-Site VPN
VPN Server
- Identity Endpoint One-Click VPN
- Teleport Zero-Configuration VPN
- WireGuard
- OpenVPN
- L2TP
VPN Client
Networking
Multi-WAN Load Balancing
Dynamic Routing: OSPF
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
MAC Address Table Size: 2,000
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy
Hardware
Max. Power Consumption: 6.2W
Power Method: USB type C (5V DC/3A)

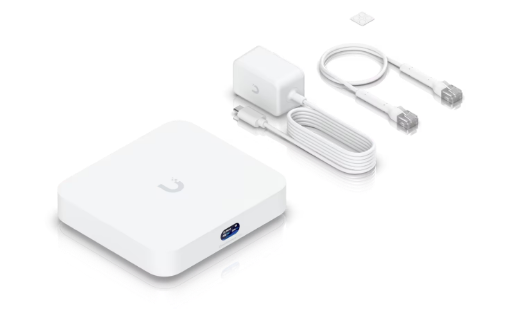

Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB
On-board Storage: 16 GB
Weight: 520 g (1.1 lb)
Enclosure Material: Polycarbonate

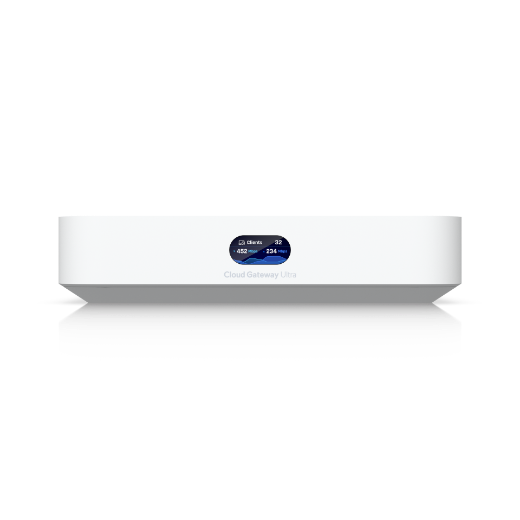

LCM Display: 0.96" status display
Management: Ethernet + Bluetooth
LEDs
Button: (1) Factory-reset
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
Certifications: CE, FCC, IC, Anatel: 04653-24-08356, SRRC
Software
Application Requirements
- Mobile App: UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later
