HARDWARE FEATURES |

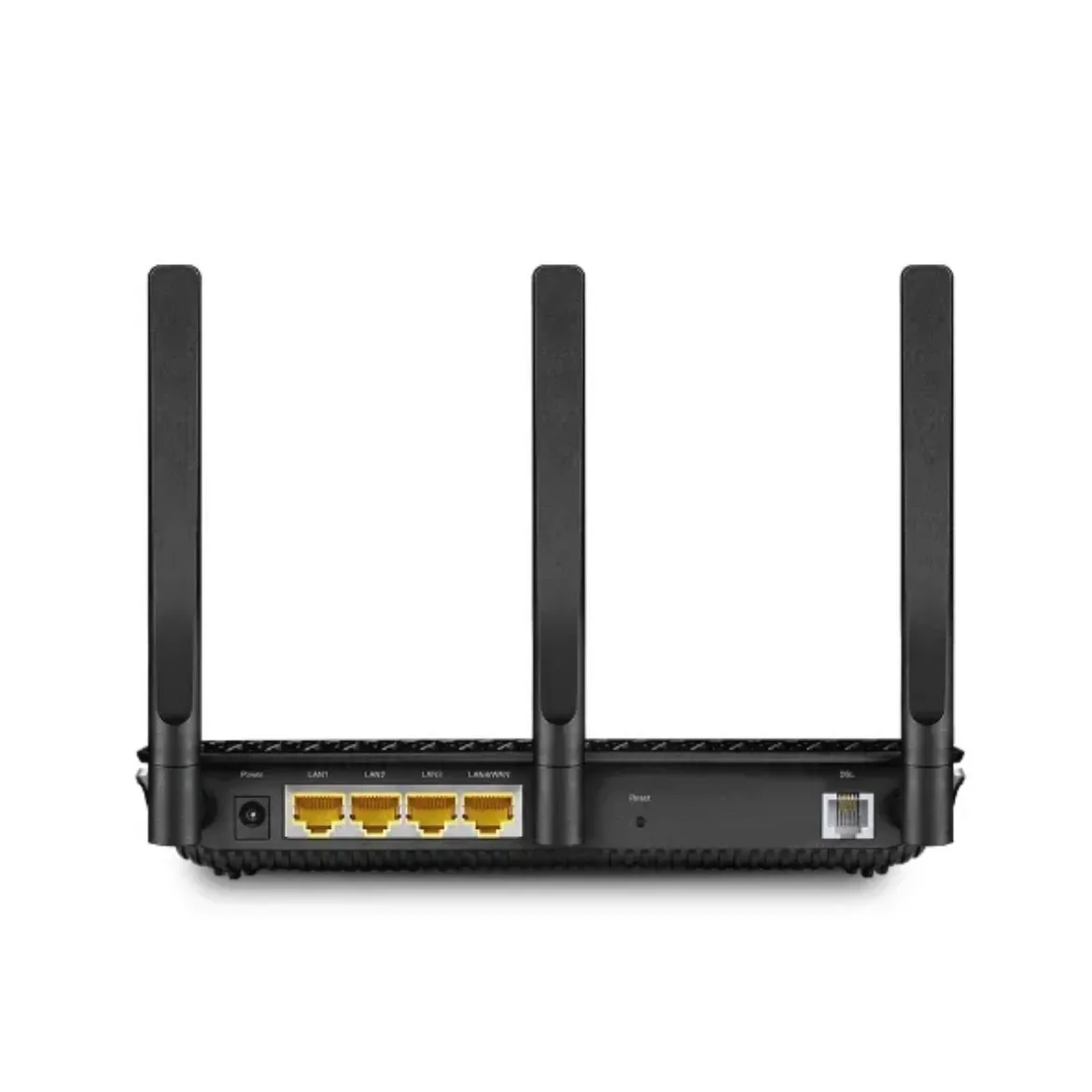

Ports | 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port,
1 USB Port |
Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED
On/Off Button |
External Power Supply | 12V/1.5A |
IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
VDSL2 Standards | ITU G.993.2, Up to 35b profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite), |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) |
Antenna Type | 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna |
WIRELESS FEATURES |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz |
Transmit Power | <20dBm (2.4 GHz), <23dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions |
Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
SOFTWARE FEATURES |
Advanced Features | Parental Controls, Network Address Translation (NAT), Static
Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Operating Modes | VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router |
Management | Web-Based Configuration (HTTP / HTTPS ), Remote management,
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP, TP-Link |
VPN | OpenVPN, PPTP VPN, IPSec VPN |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
OTHERS |
Certification | CE, RCM, RoHS |
Package Contents | DSL Modem Router
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access) |
Environment | Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
