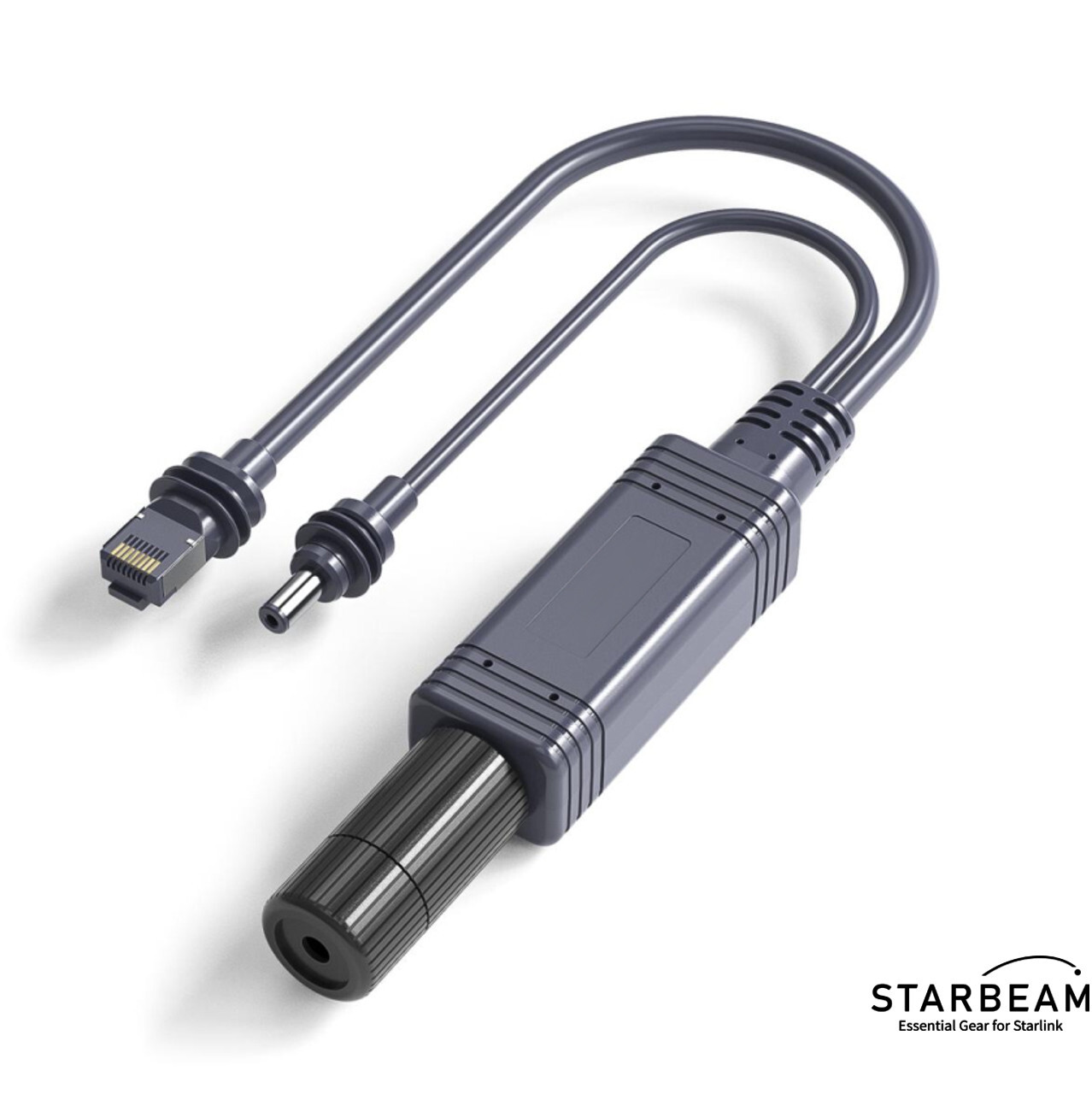

The Powertec Starlink Mini PoE Splitter Cable has two functions:
Single Cable to Mini Dish
This splitter enables you to provide both power and data connectivity in a single PoE ethernet cable to the Starlink Mini dish. The Mini does not come with a PoE injector like the other Starlink dishes, it has its own DC barrel port for powering. This splitter cable basically allows you to power the Mini dish via PoE from a single network cable.
Extend the Cable Run to the Mini Dish
Even though the Mini dish has a 12V input, 48V is recommend over medium to long cable runs to avoid voltage drop and the dish cutting out under load. When used in conjunction with a DC/DC Power Converter this cable will provide 48V to the mini dish resulting in you being able to run much longer cables to power the Mini dish.
Specifications:
- Pin Configuration: +V: 1, 2, 3, 6; -V: 4, 5, 7, 8
- Interface Input: 1*RJ45,Output:1*RJ45,1*DC 5.5*2.1mm
- Network Speed: 10/100/1000M
- Input: DC 37~52V
- Output: 48V 2.5A Max
- Transmission Distance: Up to 100 meters
- Cable Type: Cat5e or higher category cables
- Operating Temperature: -25~+70° C
- Operating Humidity: 10% - 90% (non-condensing)
- Storage Temperature: -40 to +80 ° C
- Power: 100W
SKU: SAT-SB-00007
