This compact charger uses Pulse Width Modulation (PWM) to charge 12V or 24V lead acid (sealed, gel or flooded) and Lithium batteries, and supports 12V solar arrays up to 260W or 24VDC arrays up to 520W. It features three stage charging, including constant current, constant voltage and float charging. Two USB ports are provided to charge your USB gadgets. Safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.
Includes pre-wired high current connectors for use with our range of Rovin solar panels & accessories. For connecting panels equipped with Solar PV MC4 connectors, you can use the adapter PS5122.
Features:
- Supports GEL, AGM, flooded & Lithium batteries
- PWM control technology
- 3-stage charging

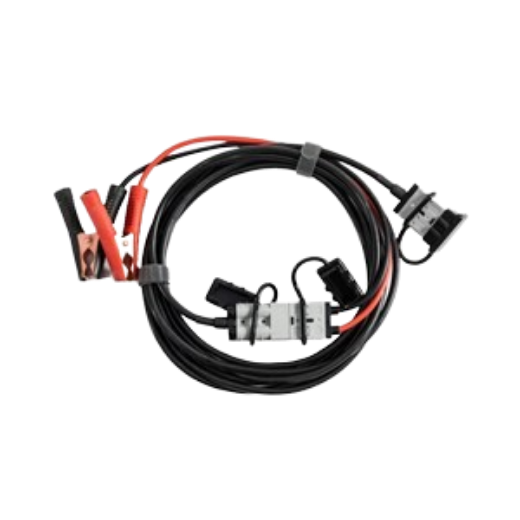

- 4.5m High-Current 50A connector extension lead
- 50cm High-Current 50A connector lead with battery clamps
- Dual USB Ports
- Max PV Input: 50VDC
Specifications:
- Packaged Volume : 5.07l
- Packaged Weight : 1.17kg
- Packaged Length : 28.5cm
- Packaged Width : 23.7cm
- Packaged Height : 7.5cm
- Burnsco Guard Rail MIN : 3pc
- Burnsco Guard Rail MAX : 6pc
- Burnsco Guard Rail Change Note : Initial Load
- Burnsco Guard Rail Change Date : 1746712800000
- Length : 104mm
- Width : 70mm
- Height : 25mm
- DC current rating : 20A
- Max Charging Current : 20A
- Max Load Current : 20A
- Charge Controller Technology : Pulse Width Modulated (PWM)
- Contains Button Cell : false
SKU: MP3772
