Description:

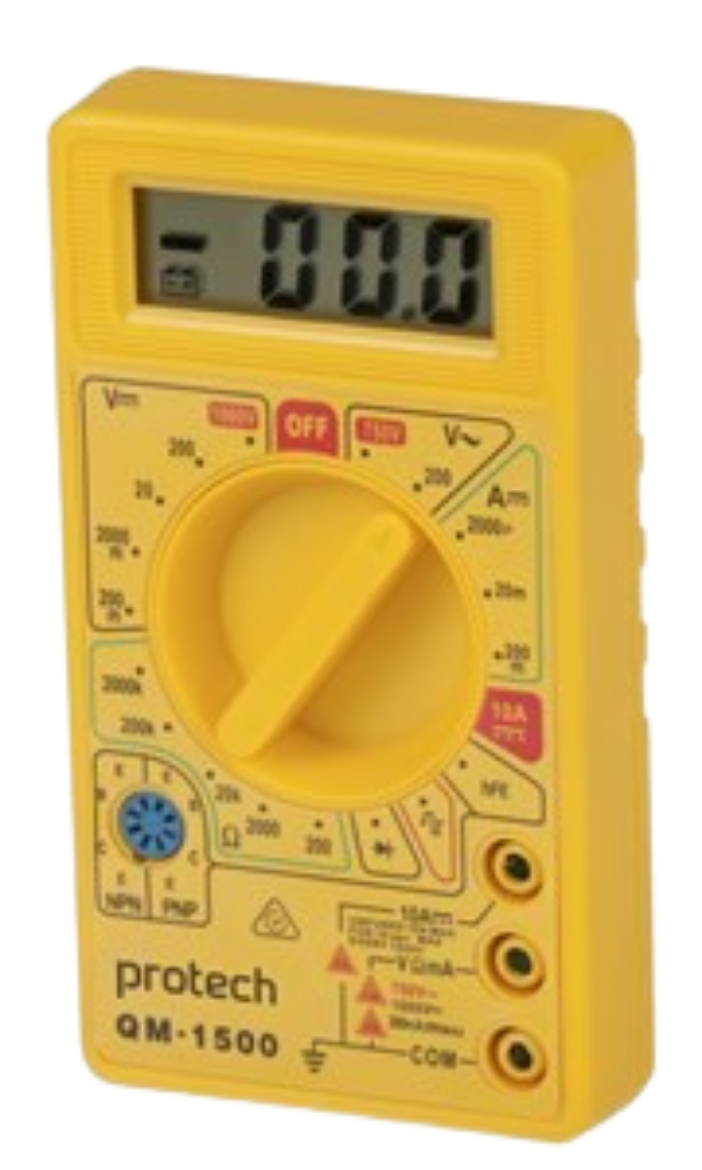

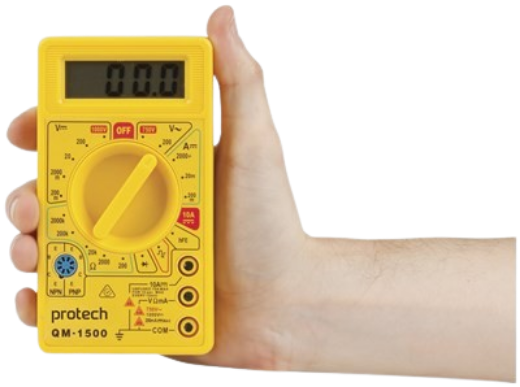

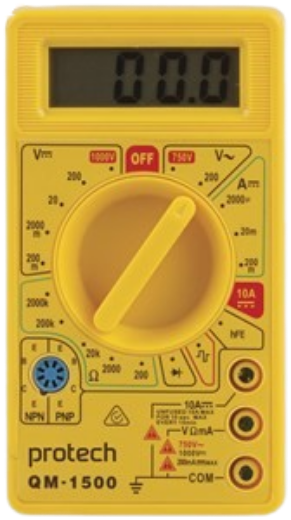

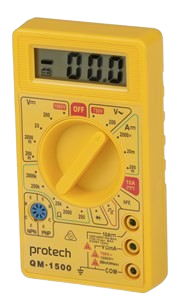

This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.
- Ideal First Meter
- Compact Size
- Overload Protected
Specifications:
- Weight : 150g
- DC Current Ranges : 2mA, 20mA, 200A
- Meter Input Impedence : 1MΩ
- AC Voltage Ranges : 200V, 750V
- AC Voltage Accuracy : ±1.2 ±10 Digits%
- DC Voltage Ranges : 200mV, 2V, 20V
- DC Voltage Accuracy : 200V ±0.5 ±2 Digits
- Safety Category : Cat II
- Safety Rating Max Volt : 500V
- Display Type : LCD
- Display Height : 30mm
- Display Width : 100mm
- Display Backlight : Not Backlit
- Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ
- Resistance Accuracy : 200kΩ ±0.8 ±2 Digits%
- DC Current Ranges : 10A
- DC Voltage Ranges : 200V, 1V
- Resistance Ranges : 2MΩ
- Input Protection Fuse : 500mA
- Special Features : Pocket Sized
- Casing : Plastic
- Size / Shape : AAA
- Battery quantity : 2pc
- Compartment location : Internal / In-built
- How is battery compartment kept closed : Clip and Screw
- Height : 125mm
- Width : 68mm
- Depth : 23mm
- Count Maximum Reading : 1 count
- DC Voltage Accuracy : 200V ±0.8 ±2 Digits
- Resistance Accuracy : 200kΩ ±1 ±2 Digits%
- Digits Displayed : 3.5digit
- Measurement Range Count : 19 count
- Probe Type : Basic Meter Probes
- Connection to meter : Shrouded 4mm Banana Plug
- DC Current Ranges : 2µA
- DC Current Accuracy : 10A ±2.5% ±2 digits2,000uA, 20mA, 200mA ±2.0% ±2 digits
- Packaged Length : 18.8cm
- Packaged Width : 12.8cm
- Packaged Height : 3.3cm
- Contains Button Cell : false
- Packaged Volume : 0.79l
- Packaged Weight : 0.14kg
SKU: QM1500
