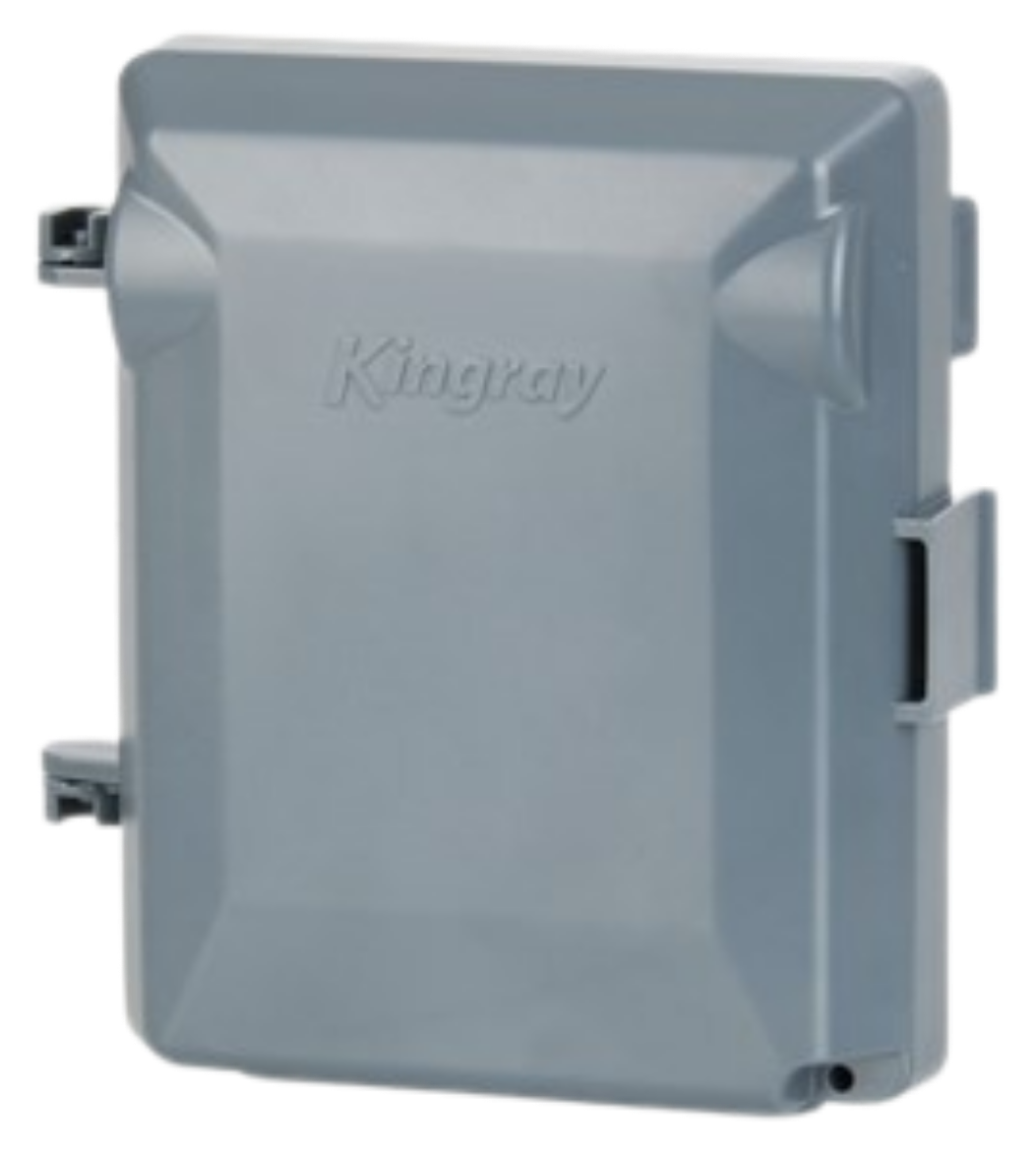

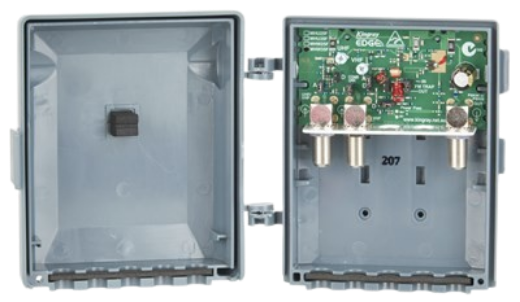

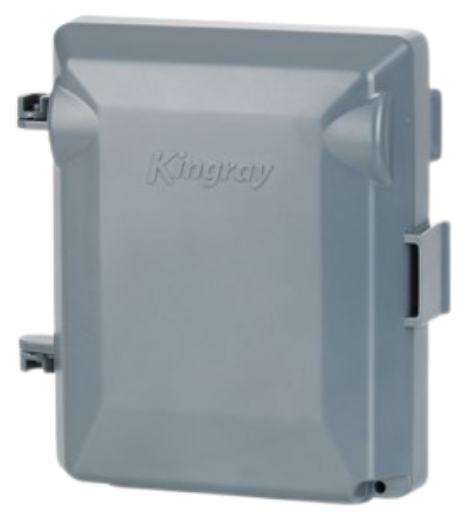

As you may be aware by now, a large chunk of the Australian TV broadcast spectrum is being reallocated for the next generation 4G/LTE mobile phone service. To guard against this, Kingray have produced this Australian made masthead amp that provides a good VHF & UHF TV band gain, and user selectable filters for FM radio, fixed pagers, and the new 4G/LTE band. Supplied with AC power injector and F-type to PAL adaptors. A fantastic product proudly made in Australia.
Features:
- FM pass option
- Selectable filters: FM, LTE, fixed pagers
- Combination and separate VHF & UHF Antenna inputs
- Suitable power supplies: LT-3256, LT-3258 or LT-3259
Specifications:
- Packaged Volume : 1.96l
- Packaged Weight : 0.58kg
- Packaged Length : 14.5cm
- Packaged Width : 6cm
- Packaged Height : 22.5cm
- UHF Gain : 35dB, 520dB
- UHF Frequency Range : 520MHz, 694MHz
- UHF Noise Figure : 2.1dB
- Amplifier Type : Masthead
- UHF Gain Control : 15dB
- VHF Gain : 22dB, 26dB
- VHF Frequency Range : 174MHz, 230MHz
- VHF Gain Control : 16dB, 12dB
- VHF Noise Figure : 3.5dB
SKU: LT3251
