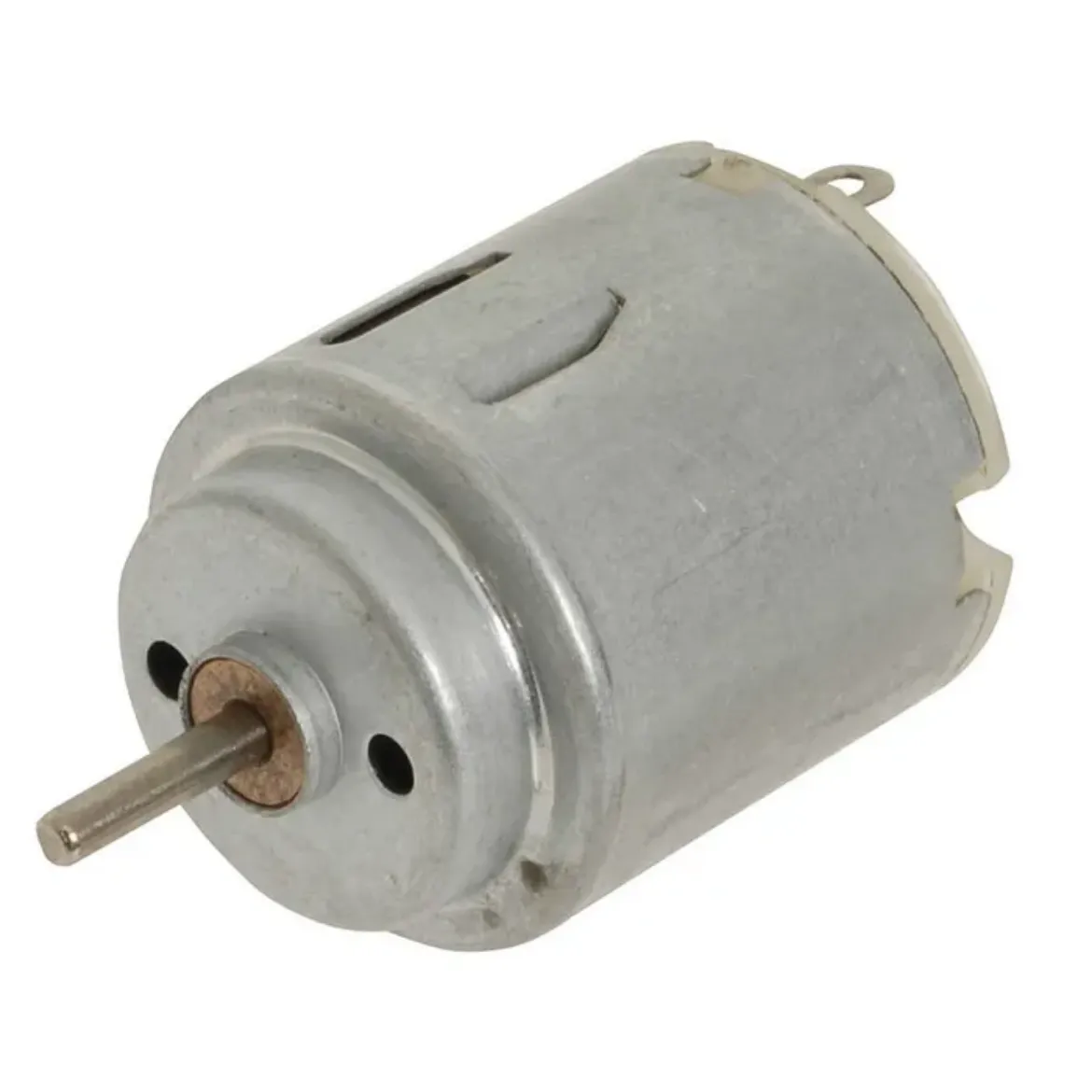

Overview
Ideal for hobbyist, experimenters, robotics, replacement, etc.
Operating Volts: 1.5- 4.5V
Size dia: 20mm
Size length: 25mm
Shaft length: 8.1mm
Shaft dia: 2mm.
Specifications
Motor
- Motor Nominal Voltage - 3.0 V
- No load current - 0.28 A
- No load RPM - 12000.0 RPM
- Shaft diameter - 2.0 mm
- Shaft length - 25.0 mm
- Max. efficiency current - 0.69 A
- Max efficiency RPM - 8540.0 RPM
- Maximum efficiency torque - 2.97 g.cm
- Motor Type - Hobby
