Description:
A budget-priced meter with everything you need - capacitance, temperature and 10A on AC and DC, compact and light weight with rugged a moulded case.
Features:
- Category: Cat III 600V
- Display: 4000 count
- Basic DVC accuracy: 0.5%
- Ave/RMS:
- Data hold
- Relative measurement

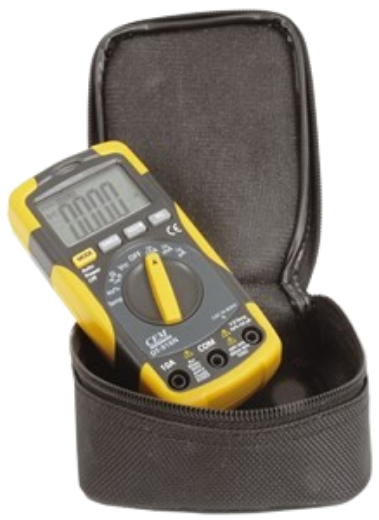

- Woven nylon pouch with room for the meter and leads included
- Leads included
- K-type probe included
- Case included
Specifications:
- Safety Category : Cat III
- Safety Rating Max Volt : 600V
- Display Type : LCD
- Display Height : 55mm
- Display Width : 25mm
- DC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V
- AC Voltage Ranges : 400mV, 4V, 40V, 400V, 600V
- AC Voltage Accuracy : 1.2%
- Meter Input Impedence : 10MΩ
- DC Voltage Accuracy : 0.5%
- AC Current Ranges : 4mA, 40mA, 400mA, 10A
- AC Current Accuracy : 3%
- DC Current Ranges : 4mA, 40mA, 400mA, 10A
- DC Current Accuracy : 2.5%
- Outdoor / Exterior Scale : -20°C
- Celcius Accuracy : 3%
- Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 400kΩ
- Resistance Accuracy : 1.2%
- Capacitance Ranges : 4nF, 40nF, 4µF, 40µF, 100µF
- Capacitance Accuracy : 3%
- Outdoor / Exterior Scale : 760°C
- Probe Type : Basic Meter Probes
- Overall probe length : 142mm
- Tip length : 2mm
- Tip diameter : 2mm
- Connection to meter : Shrouded 4mm Banana Plug
- Lead Length : 870mm
- Sensor Type : K-Type Thermocouple
- Connection to Meter : Mini-Marlin Plug with Banana Plug Adaptor
- Frequency Ranges : 4kHz, 40kHz, 400kHz, 4kHz, 10MHz
- Count Maximum Reading : 4 count
- Size / Shape : 9V
- Compartment location : Internal / In-built
- Probe rating voltage : 600V
- Probe safety rating : Cat III
- Input Protection Fuse : 10mA
- Battery quantity : 1pc
- How is battery compartment kept closed : Clip and Screw
- Height : 138mm
- Width : 68mm
- Depth : 37mm
- Probe Material : Woven Teflon
- Lead Length : 900mm
- Frequency Accuracy : 1.5
- Packaged Length : 20.5cm
- Packaged Width : 12.3cm
- Packaged Height : 7cm
- Packaged Weight : 0.44kg
- Packaged Volume : 1.77l
- Resistance Ranges : 40MΩ
SKU: QM1323
