Description:

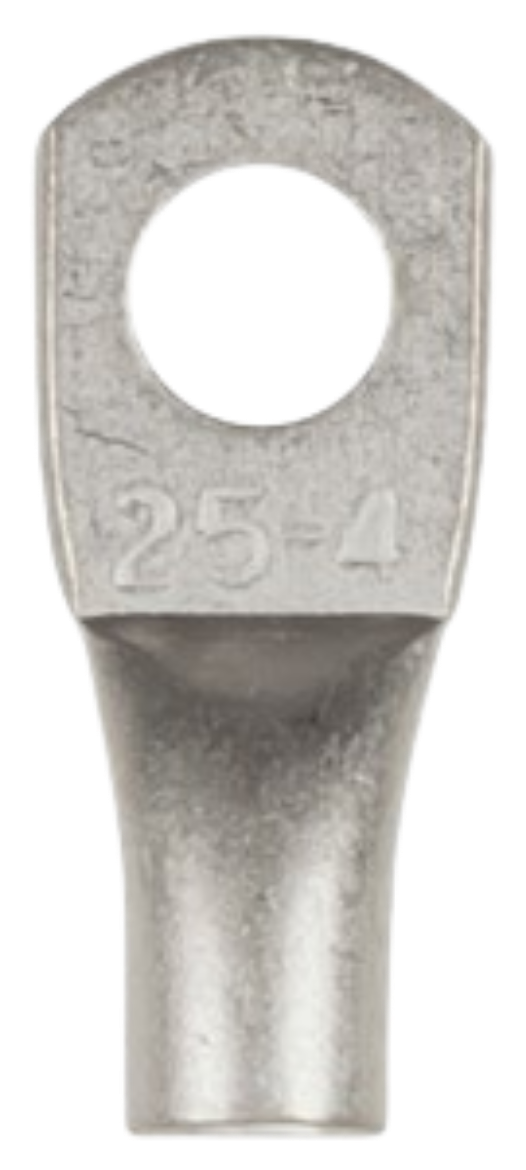

A packet of 8 4mm non-insulated 20A eye terminal connectors for cable sized up to 2.5mm squared. These lugs are best attached via a specialized crimping tool for optimum conductivity and secure fit.
Sepcifications:
- Packaged Volume : 0.12l
- Packaged Weight : 0.02kg
- Packaged Length : 12cm
- Packaged Width : 6.5cm
- Packaged Height : 1.5cm
- Length : 19mm
- Width : 8mm
- Height : 4.5mm
- Type of quick connector : Eye
- Terminal Size : 4mm
- Wire Gauge : 16AWG, 14AWG
- Cable Entry Diameter : 2.5mm, 2.5mm
- Wire Diameter : 2.5mm, 2.5mm
- Internal Terminal Size (Eye / Fork) : 4mm
- Insulation : Non Insulated
- Pack Quantity : 8pc
- Wire Size (Cross Section) : 2.5mm², 2.5mm²
- Device : Terminal
- Contact Material : Tin Plated Copper
SKU: PT4930
