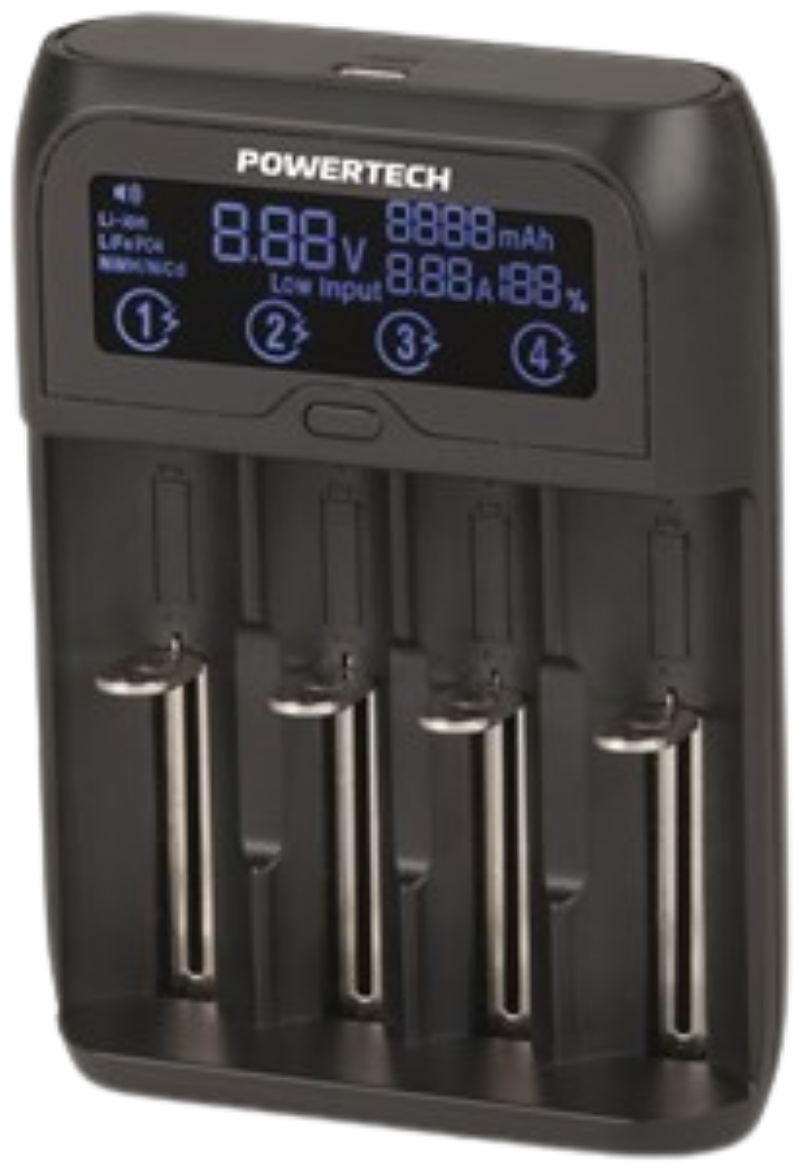

This intelligent charger has four independent charging slots to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells at the same time. The microprocessor monitors each battery and provides a safe and effective charge using precise Pulse Width Modulation (PWM) technology. A single Li-ion or LiFePO4 cell can also be fast charged at up to 2A. The high contrast LCD screen provides real-time battery monitoring, including charging current (A), charging capacity (mAh), voltage (V) and battery power (%). Features include alarm and error messages for bad batteries, reverse polarity protection, short circuit, over-charge, and over-temperature. Power comes from an available USB port using the supplied USB Type-C power cable.
Features:
- Suits Ni-MH, N-Cd, Li-ion & LiFePO4
- Intelligent fast charging up to 2A
- Independent charging slots
- LCD screen
Supported Batteries:
- 3.6-3.7V Li-ion
- 3.2V LifePO4
- 1.2V Ni-MH/Ni-Cd
Specifications:
- Width : 96mm
- Height : 129mm
- Depth : 32mm
- Weight : 170g
- USB Voltage Input : 5V, 5V
- USB Input Current : 2A, 2A
- USB Item Connection : Type C
- USB Lead included : true
- Packaged Volume : 0.57l
- Packaged Weight : 0.22kg
- Packaged Length : 13.5cm
- Packaged Width : 12cm
- Packaged Height : 3.5cm
- Type of Batteries : Nickel Metal Hydride (Ni-MH)Nickel Cadmium (Ni-Cad)Lithium IonLithium Ferrous Phosphate (LiFePO4)
- Cell Type(s) Charged : AAAAASub-CC10440, 14500, 16340, 17335, 17500, 17670, 18350, 18650, 22650, 26500, 26650, 14650, 18500, 18700, 20700, 21700, 22700
- Number of Cells : 4pc
- Multi-cell Charging Conditions : Independent Charge Control for Each Battery Slot
- Charger Output Voltage : 4.2V, 3.65V, 1.48V
- Charger Output Current : 2A, 1A, 650mA, 500mA
- Controller Type : PWM
- Reverse Polarity Protection : true
SKU: MB3703
